D
/
Automatic Transmission Hydraulic Circuit
4 / 10
p.005 →
−
100%
+

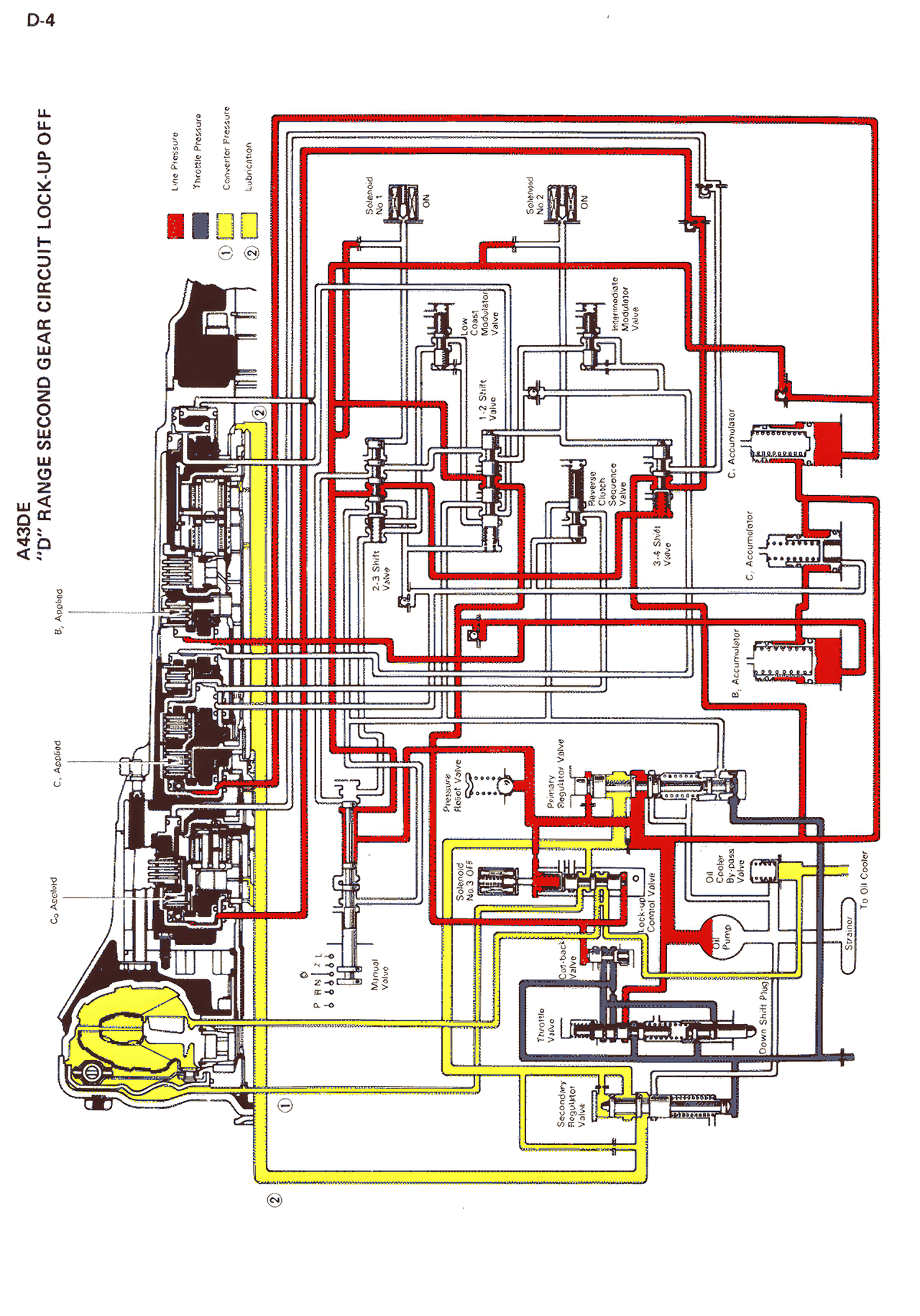

D-4 4WD RANGE SECOND GEAR CIRCUIT LOCK UP OFF Low & Reverse Brake Second Brake Coast Clutch Direct Clutch O.D. Brake 1 2 O
