4 CELICA SUPRA (Cont'd)

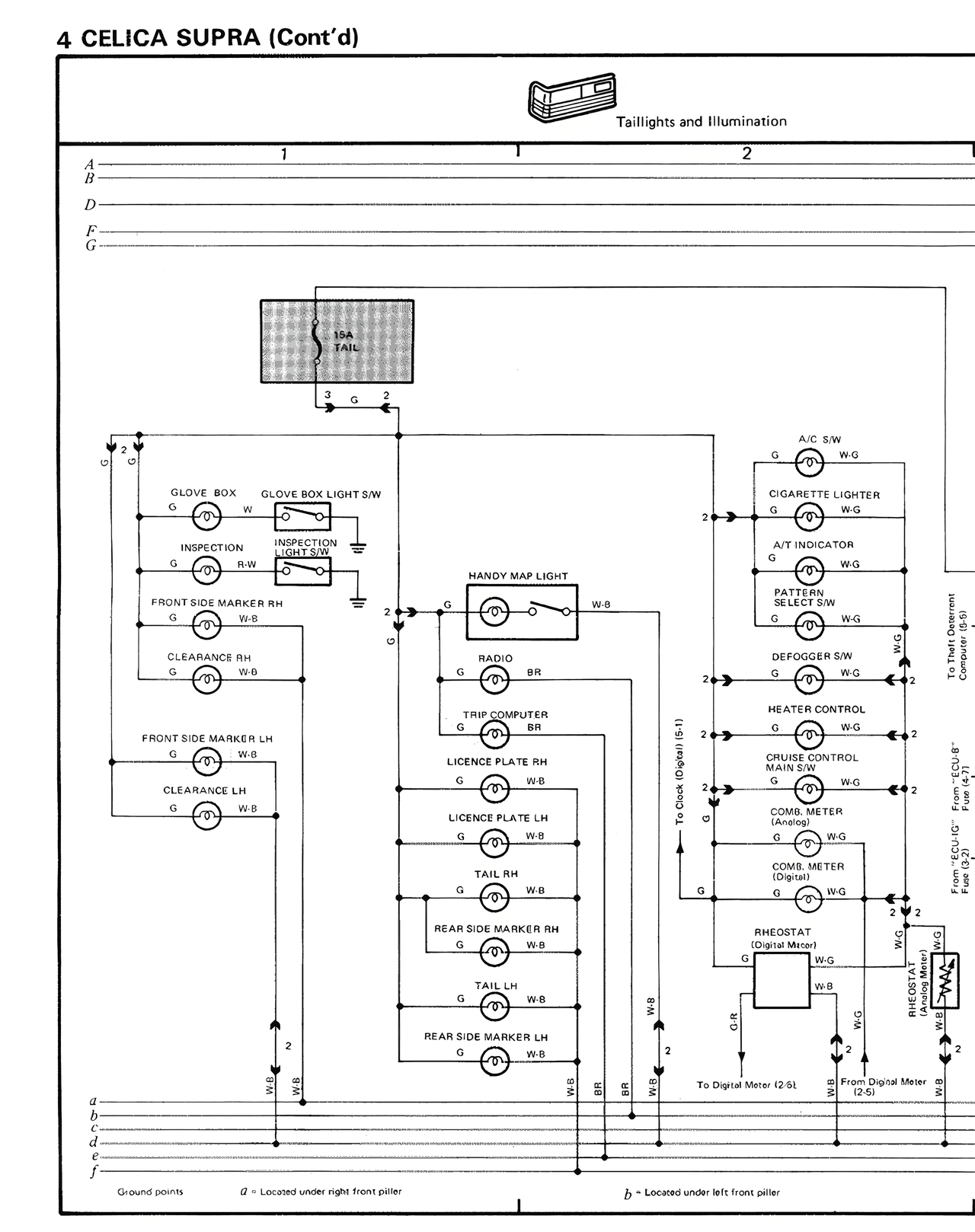

Taillights and Illumination

GLOVE BOX
O    W-B

INSPECTION
O    B-W

FRONT SIDE MARKER RH
O    W-B

CLEARANCE RH
O    W-B

FRONT SIDE MARKER LH
O    W-B

CLEARANCE LH
O    W-B

GLOVE BOX LIGHT S/W
O
INSPECTION
O    B-W

HANDY MAP LIGHT
O    W-B

RADIO
O    BR

HEATER/AC
O    BR

LICENCE RH
O    W-B

LICENCE PLATE LH
O    W-B

TAIL RH
O    W-B

REAR SIDE MARKER RH
O    W-B

TAIL LH
O    W-B

REAR SIDE MARKER LH
O    W-B

A/C S/W
O

CIGAR LIGHTER
S/W
O

ASH INDICATOR
SELECT S/W
O    W-G

DEFOGGER S/W
O    W-G

HEATER CONTROL
O

BLOWER CONTROL
O

DRUM COUNTER
(Analog)
O    W-O

COMB. METER
(Digital)
O    W-O

RHEOSTAT
(Digital Meter)
O    W-G

To Digital Meter (2-S)

To Front Digital Meter

RHEOSTAT
(Analog Meter)

Ground (W/H)
0 - Locates under right front pillar
b - Locates under left front pillar
