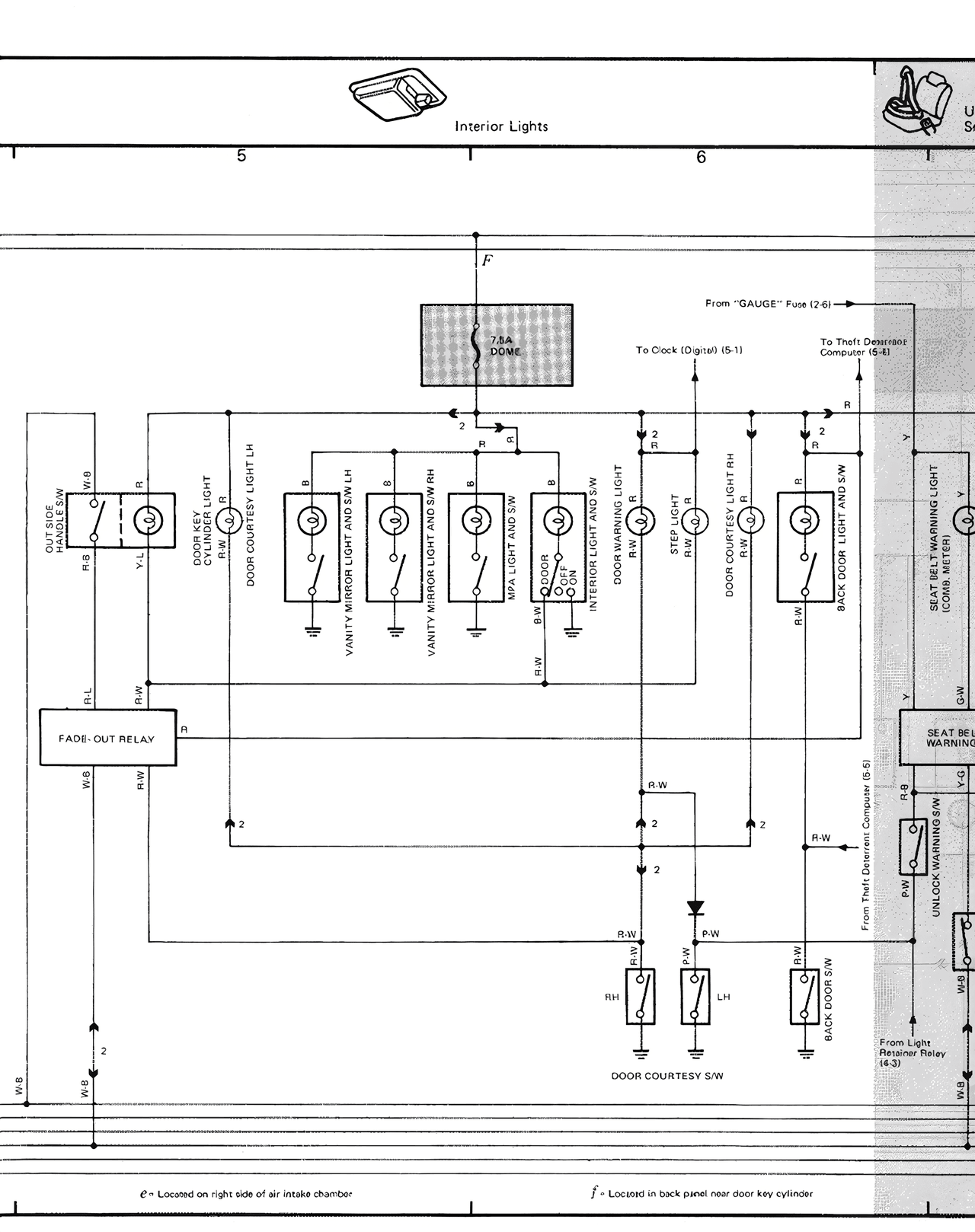

Interior Lights
From "GAUGE" Fuse (7.5A)
To Clock (Digital) (6-1)
To Theft-Deterrent Warning Light System (EL-6)
DOOR COURTESY LIGHT
DOOR UNLOCK REMINDER LIGHT
VANITY MIRROR LIGHT
GLOVE BOX LIGHT
WARNING BUZZER
DOOR CONTROL SWITCH
DOOR CONTROL RELAY
INTERIOR LIGHT
LUGGAGE ROOM LIGHT
FADE-OUT RELAY
B-W
B-W
B-W
R-W
LH
RH
DOOR COURTESY S/W
From Light Control Relay (6-7)
SEAT BELT WARNING
e - Located on right side of left intake chamber.
f - Located in back panel near door lock cylinder.
