EC/Emission Control Systems — Exhaust Gas Recirculation (EGR) System, page 10

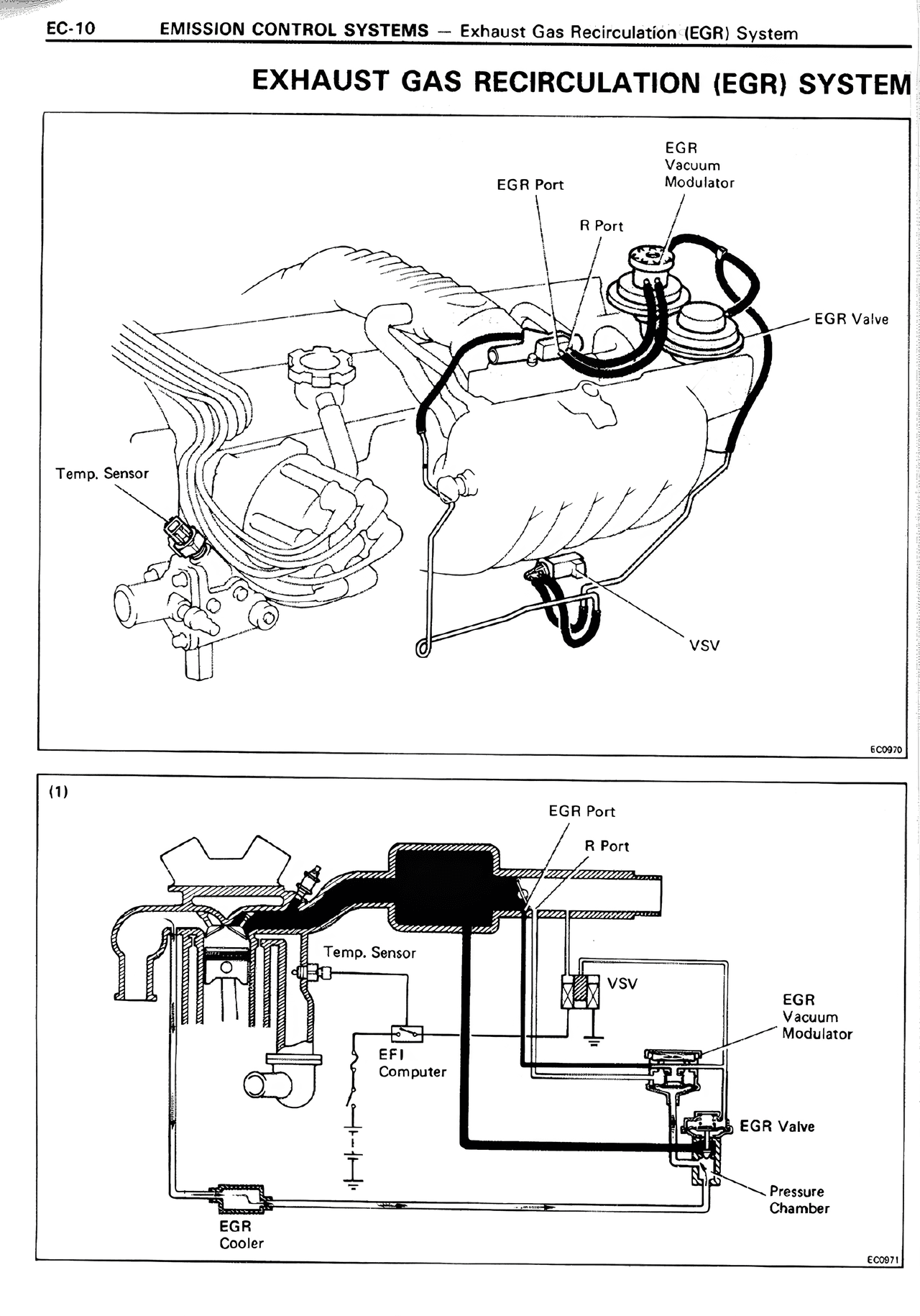

EC-10     EMISSION CONTROL SYSTEMS — Exhaust Gas Recirculation (EGR) System

EXHAUST GAS RECIRCULATION (EGR) SYSTEM

[Top diagram labels:]
EGR Vacuum Modulator
R Port
EGR Port
EGR Valve
VSV
Temp. Sensor

E0075

[Bottom diagram labels:]
(1)
EGR Port
R Port
Temp. Sensor
VSV
EGR Vacuum Modulator
EGR Valve
EFI Computer
Pressure Chamber
EGR Cooler

E0081
