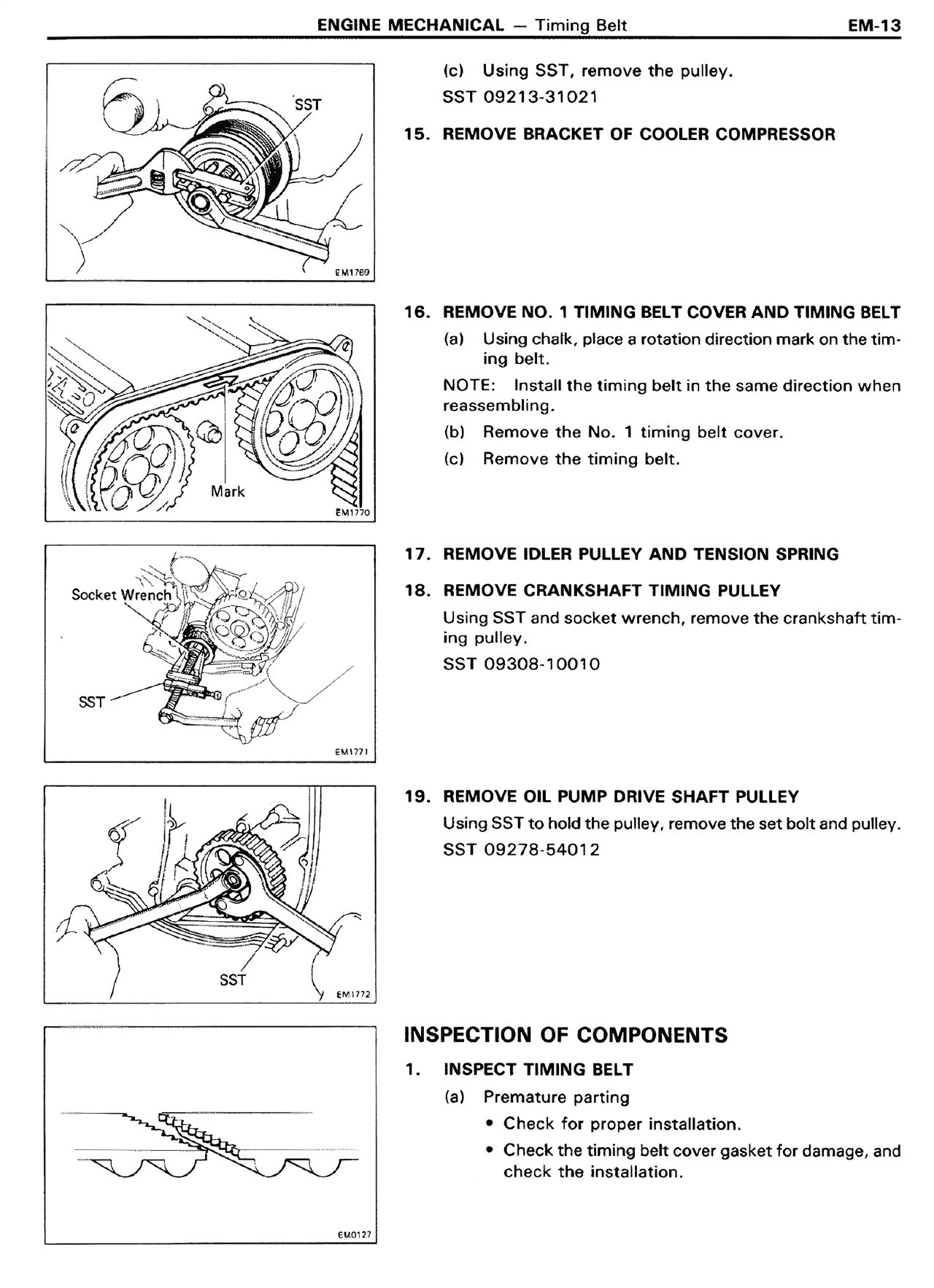

EM/Engine Mechanical, page 13

ENGINE MECHANICAL — Timing Belt                                    EM-13

(c) Using SST, remove the pulley.
SST 09213-31021

15. REMOVE BRACKET OF COOLER COMPRESSOR

16. REMOVE NO. 1 TIMING BELT COVER AND TIMING BELT
(a) Using chalk, place a rotation direction mark on the timing belt.
NOTE: Install the timing belt in the same direction when
reassembling.
(b) Remove the No. 1 timing belt cover.
(c) Remove the timing belt.

17. REMOVE IDLER PULLEY AND TENSION SPRING

18. REMOVE CRANKSHAFT TIMING PULLEY
Using SST and socket wrench, remove the crankshaft timing pulley.
SST 09308-10010

19. REMOVE OIL PUMP DRIVE SHAFT PULLEY
Using SST to hold the pulley, remove the set bolt and pulley.
SST 09278-54012

INSPECTION OF COMPONENTS

1. INSPECT TIMING BELT
(a) Premature parting
• Check for proper installation.
• Check the timing belt cover gasket for damage, and
check the installation.
