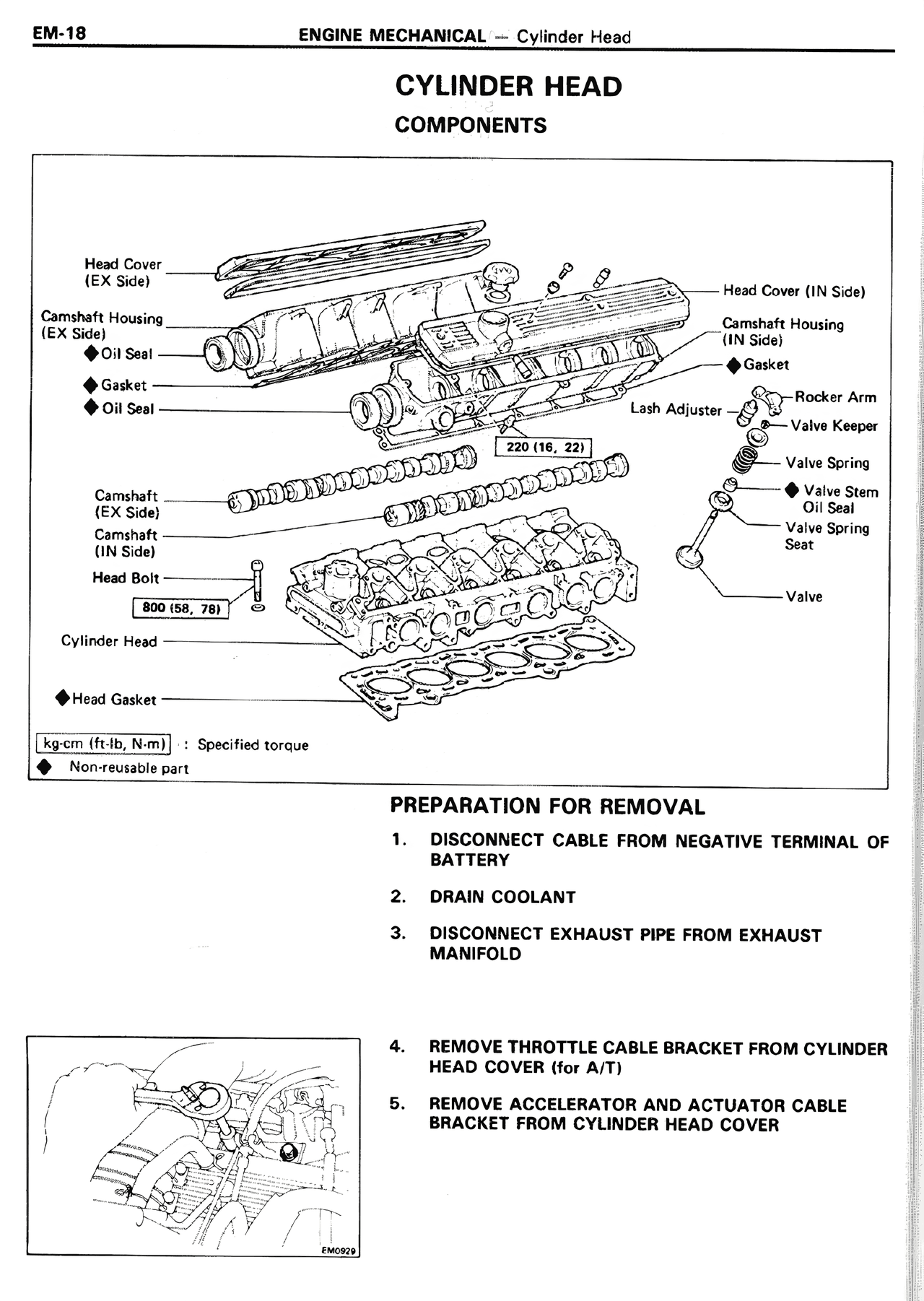

CYLINDER HEAD
COMPONENTS

Head Cover
(EX Side)
Head Cover (IN Side)
Camshaft Housing
(IN Side)
Camshaft Housing
(EX Side)
Gasket
Oil Seal
Gasket
Rocker Arm
Oil Seal
Lash Adjuster
Valve Keeper
[20 [16, 22]]
Valve Spring
Valve Stem
Camshaft
Oil Seal
(EX Side)
Valve Spring
Camshaft
Retainer
(IN Side)
Valve
Head Bolt
[90 [68, 78]]
Cylinder Head
Head Gasket

kg·cm [ft·lb, N·m] : Specified torque
◆ Non-reusable part

PREPARATION FOR REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF
BATTERY

2. DRAIN COOLANT

3. DISCONNECT EXHAUST PIPE FROM EXHAUST
MANIFOLD

4. REMOVE THROTTLE CABLE BRACKET FROM CYLINDER
HEAD COVER (for A/T)

5. REMOVE ACCELERATOR AND ACTUATOR CABLE
BRACKET FROM CYLINDER HEAD COVER
