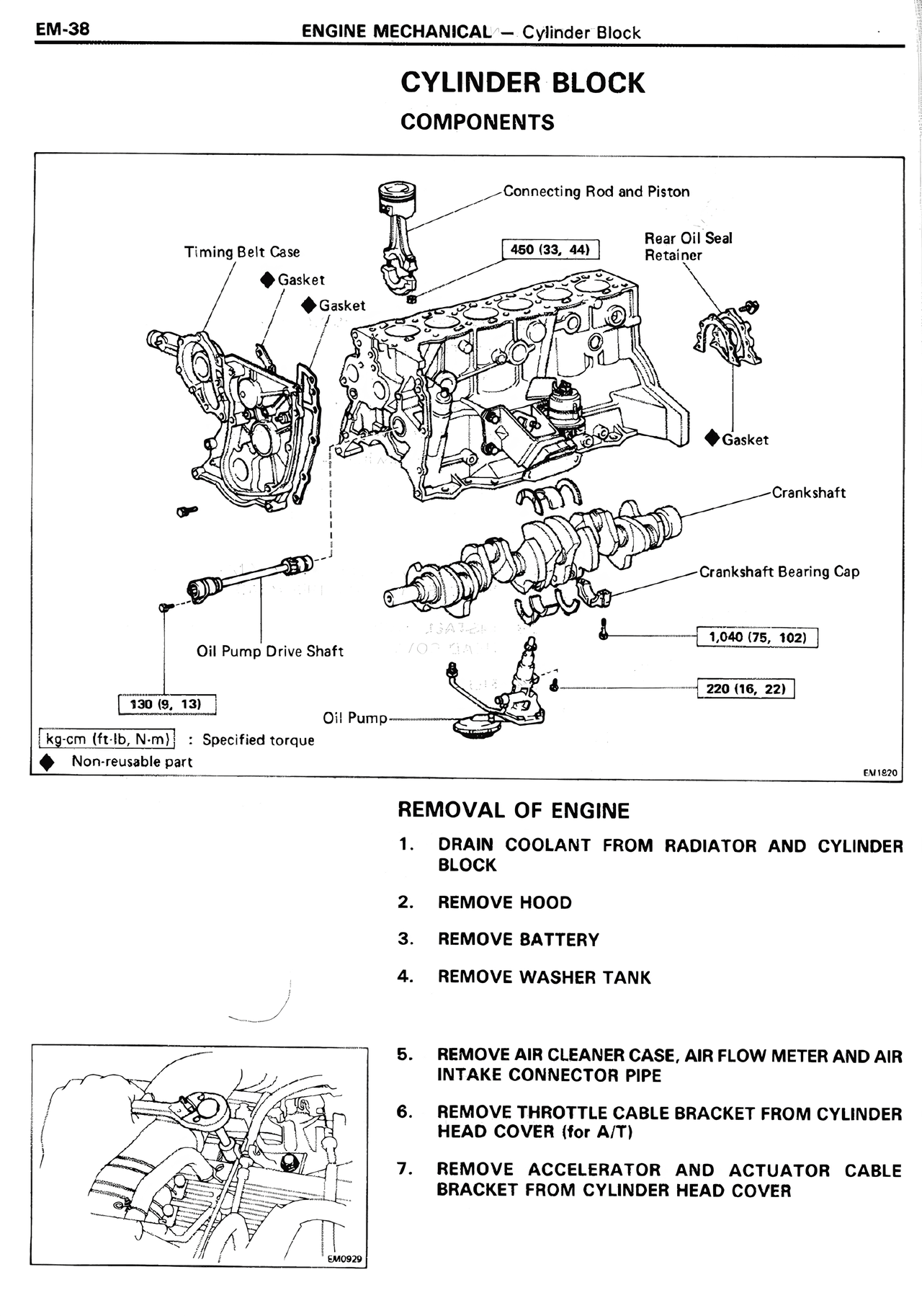

CYLINDER BLOCK
COMPONENTS
Connecting Rod and Piston
Timing Belt Case
Gasket
Gasket
460 [33, 44]
Rear Oil Seal
Retainer
Gasket
Crankshaft
Crankshaft Bearing Cap
Oil Pump Drive Shaft
130 [9, 13]
Oil Pump
1,040 [75, 102]
220 [16, 22]
kg·cm [ft·lb, N·m] : Specified torque
◆ Non-reusable part
EM1820
REMOVAL OF ENGINE
1. DRAIN COOLANT FROM RADIATOR AND CYLINDER BLOCK
2. REMOVE HOOD
3. REMOVE BATTERY
4. REMOVE WASHER TANK
5. REMOVE AIR CLEANER CASE, AIR FLOW METER AND AIR INTAKE CONNECTOR PIPE
6. REMOVE THROTTLE CABLE BRACKET FROM CYLINDER HEAD COVER (for A/T)
7. REMOVE ACCELERATOR AND ACTUATOR CABLE BRACKET FROM CYLINDER HEAD COVER
EM1820
