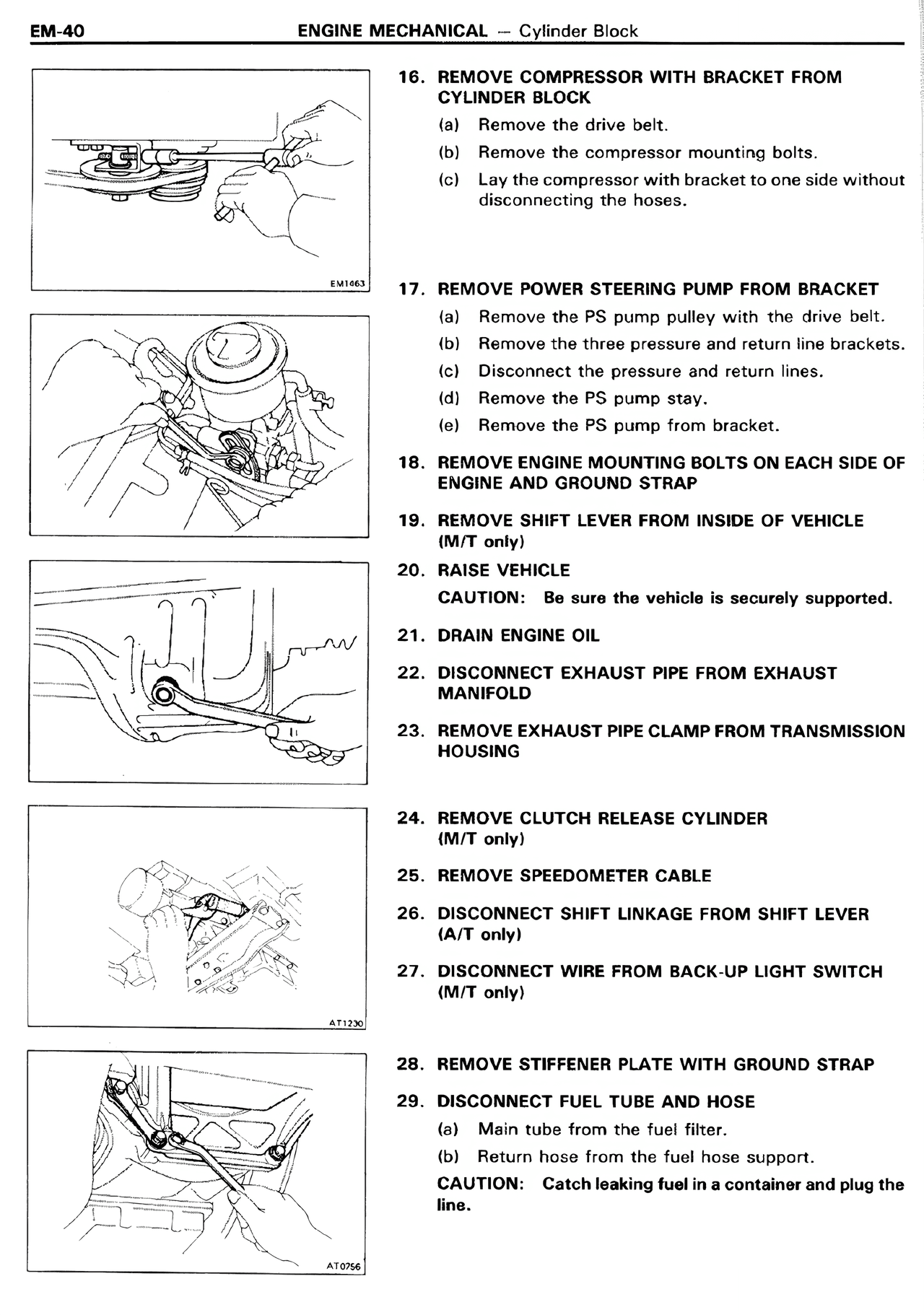

ENGINE MECHANICAL — Cylinder Block — MK2 Supra Engine Mechanical, page 40
100%
16. REMOVE COMPRESSOR WITH BRACKET FROM CYLINDER BLOCK (a) Remove the drive belt. (b) Remove the compressor mounting bolts. (c) Lay the compressor with bracket to one side without disconnecting the hoses. 17. REMOVE POWER STEERING PUMP FROM BRACKET (a) Remove the PS pump pulley with the drive belt. (b) Remove the three pressure and return line brackets. (c) Disconnect the pressure and return lines. (d) Remove the PS pump stay. (e) Remove the PS pump from bracket. 18. REMOVE ENGINE MOUNTING BOLTS ON EACH SIDE OF ENGINE AND GROUND STRAP 19. REMOVE SHIFT LEVER FROM INSIDE OF VEHICLE (M/T only) 20. RAISE VEHICLE CAUTION: Be sure the vehicle is securely supported. 21. DRAIN ENGINE OIL 22. DISCONNECT EXHAUST PIPE FROM EXHAUST MANIFOLD 23. REMOVE EXHAUST PIPE CLAMP FROM TRANSMISSION HOUSING 24. REMOVE CLUTCH RELEASE CYLINDER (M/T only) 25. REMOVE SPEEDOMETER CABLE 26. DISCONNECT SHIFT LINKAGE FROM SHIFT LEVER (A/T only) 27. DISCONNECT WIRE FROM BACK-UP LIGHT SWITCH (M/T only) 28. REMOVE STIFFENER PLATE WITH GROUND STRAP 29. DISCONNECT FUEL TUBE AND HOSE (a) Main tube from the fuel filter. (b) Return hose from the fuel hose support. CAUTION: Catch leaking fuel in a container and plug the line.
