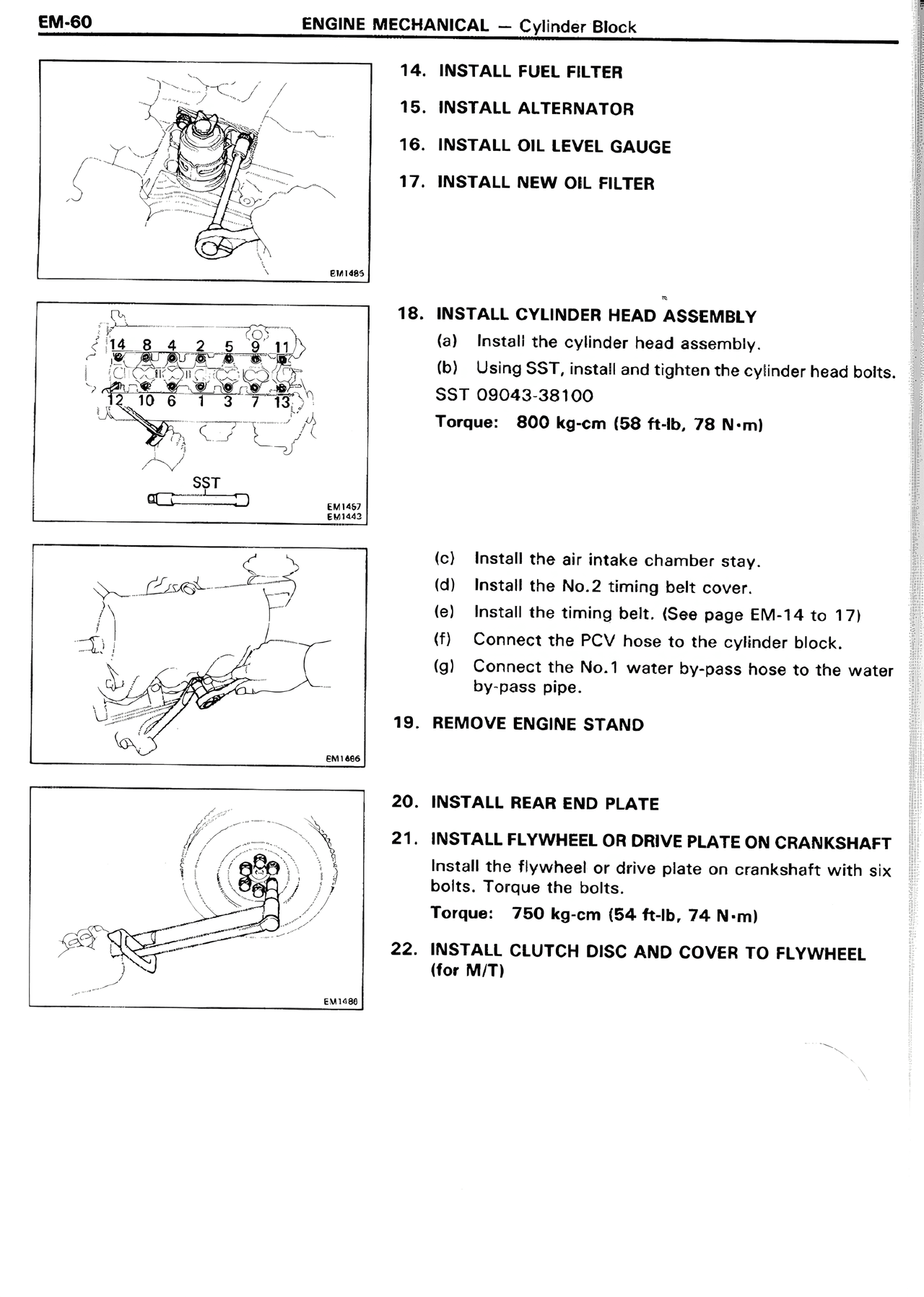

EM-60 ENGINE MECHANICAL — Cylinder Block
14. INSTALL FUEL FILTER
15. INSTALL ALTERNATOR
16. INSTALL OIL LEVEL GAUGE
17. INSTALL NEW OIL FILTER
18. INSTALL CYLINDER HEAD ASSEMBLY
(a) Install the cylinder head assembly.
(b) Using SST, install and tighten the cylinder head bolts.
SST 09043-38100
Torque: 800 kg-cm (58 ft-lb, 78 N·m)
(c) Install the air intake chamber stay.
(d) Install the No.2 timing belt cover.
(e) Install the timing belt. (See page EM-14 to 17)
(f) Connect the PCV hose to the cylinder block.
(g) Connect the No.1 water by-pass hose to the water by-pass pipe.
19. REMOVE ENGINE STAND
20. INSTALL REAR END PLATE
21. INSTALL FLYWHEEL OR DRIVE PLATE ON CRANKSHAFT
Install the flywheel or drive plate on crankshaft with six bolts. Torque the bolts.
Torque: 750 kg-cm (54 ft-lb, 74 N·m)
22. INSTALL CLUTCH DISC AND COVER TO FLYWHEEL (for M/T)
