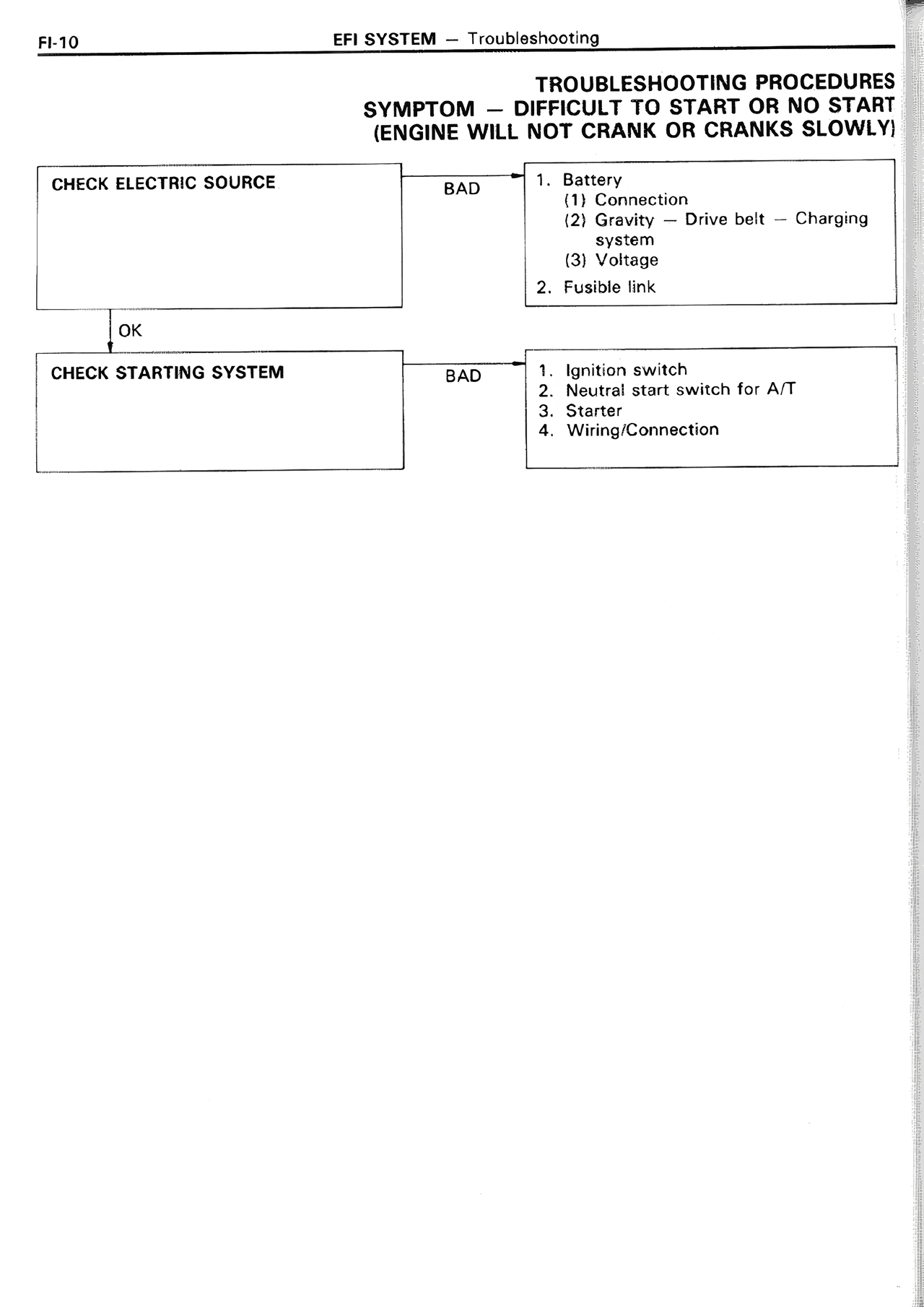

FI-10

EFI SYSTEM — Troubleshooting

TROUBLESHOOTING PROCEDURES
SYMPTOM — DIFFICULT TO START OR NO START
(ENGINE WILL NOT CRANK OR CRANKS SLOWLY)

CHECK ELECTRIC SOURCE

BAD

1. Battery
(1) Connection
(2) Gravity — Drive belt — Charging
system
(3) Voltage
2. Fusible link

OK

CHECK STARTING SYSTEM

BAD

1. Ignition switch
2. Neutral start switch for A/T
3. Starter
4. Wiring/Connection
