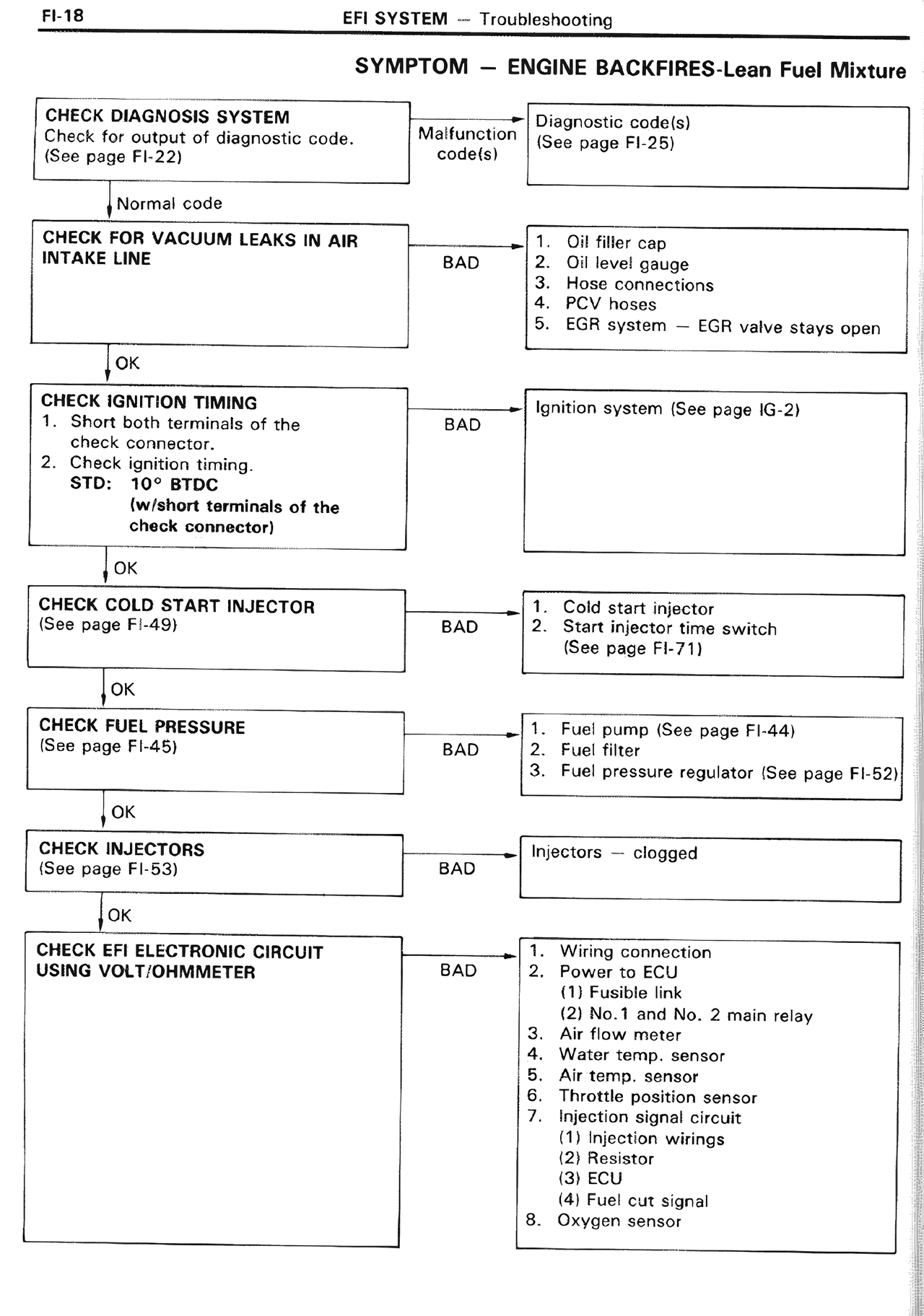

FI/EFI System — Symptom — Engine BACKFIRES-Lean Fuel Mixture, page 18

SYMPTOM — ENGINE BACKFIRES-Lean Fuel Mixture

CHECK DIAGNOSIS SYSTEM
Check for output of diagnostic code.
(See page FI-22)

Normal code

CHECK FOR VACUUM LEAKS IN AIR
INTAKE LINE

OK

CHECK IGNITION TIMING
1. Short both terminals of the
   check connector.
2. Check ignition timing.
   STD: 10° BTDC
   (w/short terminals of the
   check connector)

OK

CHECK COLD START INJECTOR
(See page FI-49)

OK

CHECK FUEL PRESSURE
(See page FI-45)

OK

CHECK INJECTORS
(See page FI-53)

OK

CHECK EFI ELECTRONIC CIRCUIT
USING VOLT/OHMMETER

Malfunction
code(s)

BAD

BAD

BAD

BAD

BAD

BAD

Diagnostic code(s)
(See page FI-22)

1. Oil filler cap
2. Oil level gauge
3. Hose connections
4. PCV hoses
5. EGR system — EGR valve stays open

Ignition system (See page IG-2)

1. Cold start injector
2. Start injector time switch
   (See page FI-71)

1. Fuel pump (See page FI-44)
2. Fuel filter
3. Fuel pressure regulator (See page FI-52)

Injectors — clogged

1. Wiring connection
2. Power to ECU
   (1) Fusible link
   (2) No.1 and No. 2 main relay
3. Air flow meter
4. Water temp. sensor
5. Air temp. sensor
6. Throttle position sensor
7. Injection signal circuit
   (1) Injection wirings
   (2) Resistor
   (3) ECU
   (4) Fuel cut signal
8. Oxygen sensor
