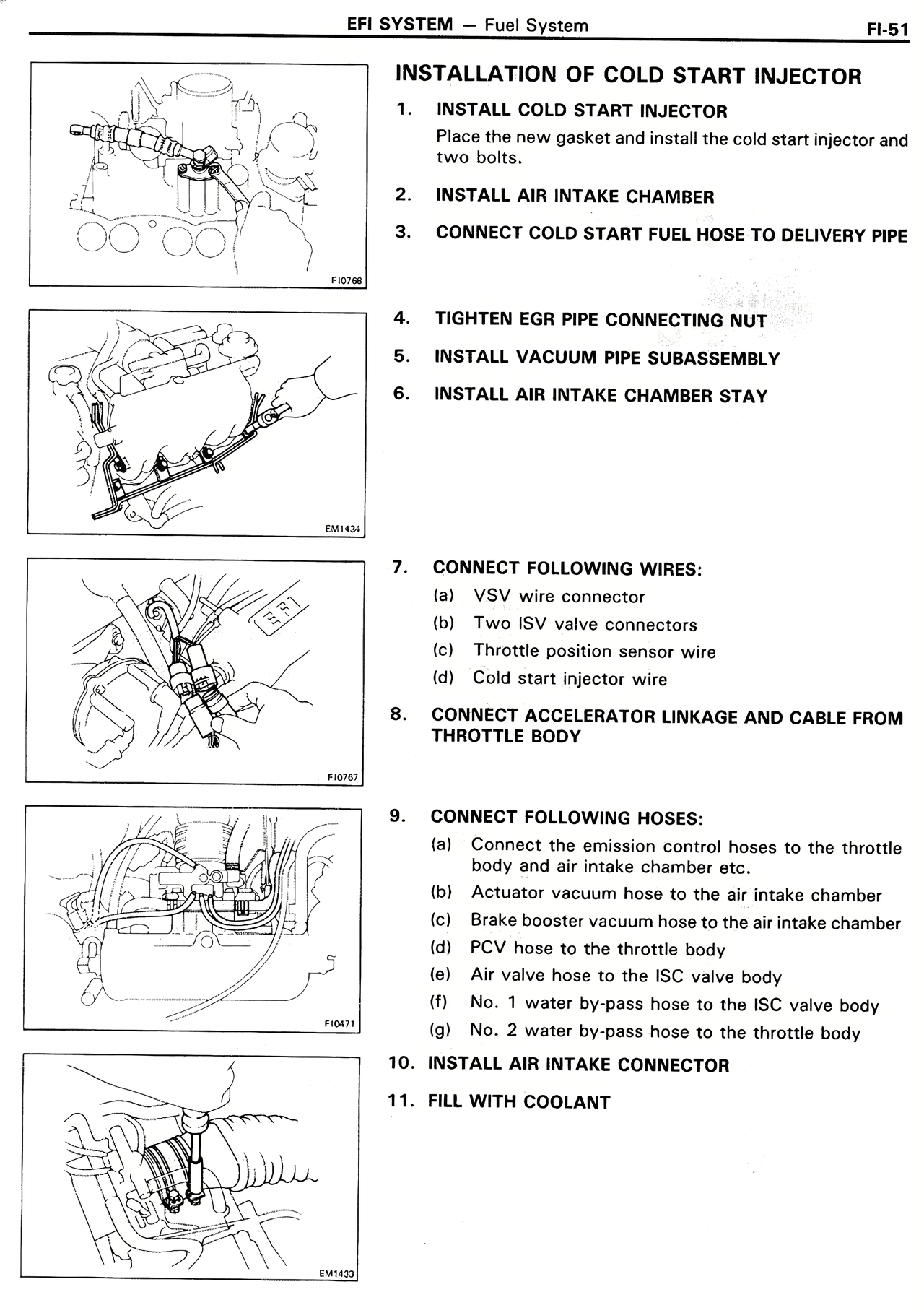

INSTALLATION OF COLD START INJECTOR
1. INSTALL COLD START INJECTOR
Place the new gasket and install the cold start injector and two bolts.
2. INSTALL AIR INTAKE CHAMBER
3. CONNECT COLD START FUEL HOSE TO DELIVERY PIPE
4. TIGHTEN EGR PIPE CONNECTING NUT
5. INSTALL VACUUM PIPE SUBASSEMBLY
6. INSTALL AIR INTAKE CHAMBER STAY
7. CONNECT FOLLOWING WIRES:
(a) VSV wire connector
(b) Two ISV valve connectors
(c) Throttle position sensor wire
(d) Cold start injector wire
8. CONNECT ACCELERATOR LINKAGE AND CABLE FROM THROTTLE BODY
9. CONNECT FOLLOWING HOSES:
(a) Connect the emission control hoses to the throttle body and air intake chamber etc.
(b) Actuator vacuum hose to the air intake chamber
(c) Brake booster vacuum hose to the air intake chamber
(d) PCV hose to the throttle body
(e) Air valve hose to the ISC valve body
(f) No. 1 water by-pass hose to the ISC valve body
(g) No. 2 water by-pass hose to the throttle body
10. INSTALL AIR INTAKE CONNECTOR
11. FILL WITH COOLANT
