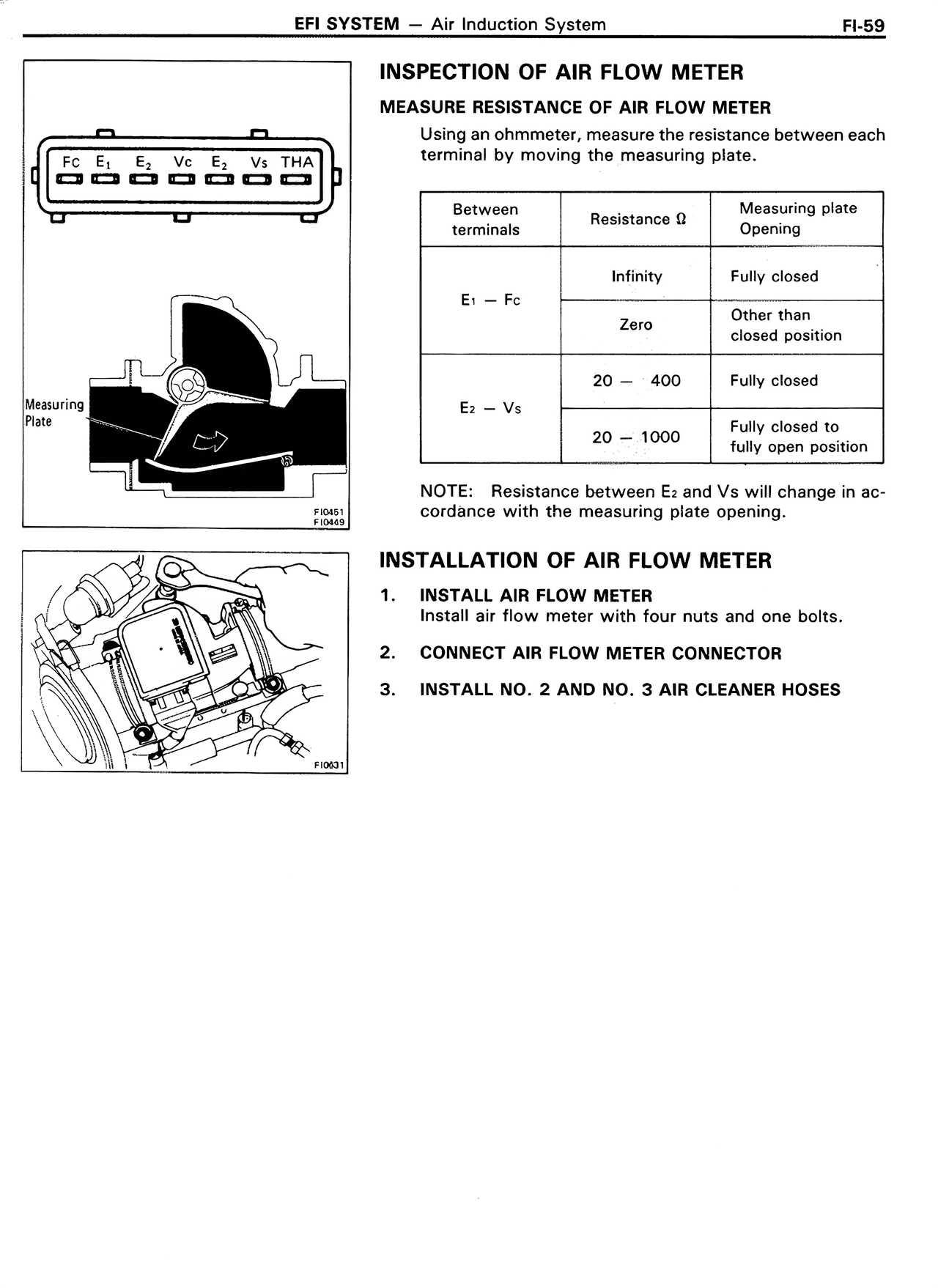

INSPECTION OF AIR FLOW METER
MEASURE RESISTANCE OF AIR FLOW METER
Using an ohmmeter, measure the resistance between each terminal by moving the measuring plate.
Between terminals | Resistance Ω | Measuring plate Opening
E₁ - Fc | Infinity | Fully closed
E₁ - Fc | Zero | Other than closed position
E₂ - Vs | 20 - 400 | Fully closed
E₂ - Vs | 20 - 1000 | Fully closed to fully open position
NOTE: Resistance between E₂ and Vs will change in accordance with the measuring plate opening.
INSTALLATION OF AIR FLOW METER
1. INSTALL AIR FLOW METER
Install air flow meter with four nuts and one bolts.
2. CONNECT AIR FLOW METER CONNECTOR
3. INSTALL NO. 2 AND NO. 3 AIR CLEANER HOSES
