FI/EFI System70 / 80

EFI System page 70

100%

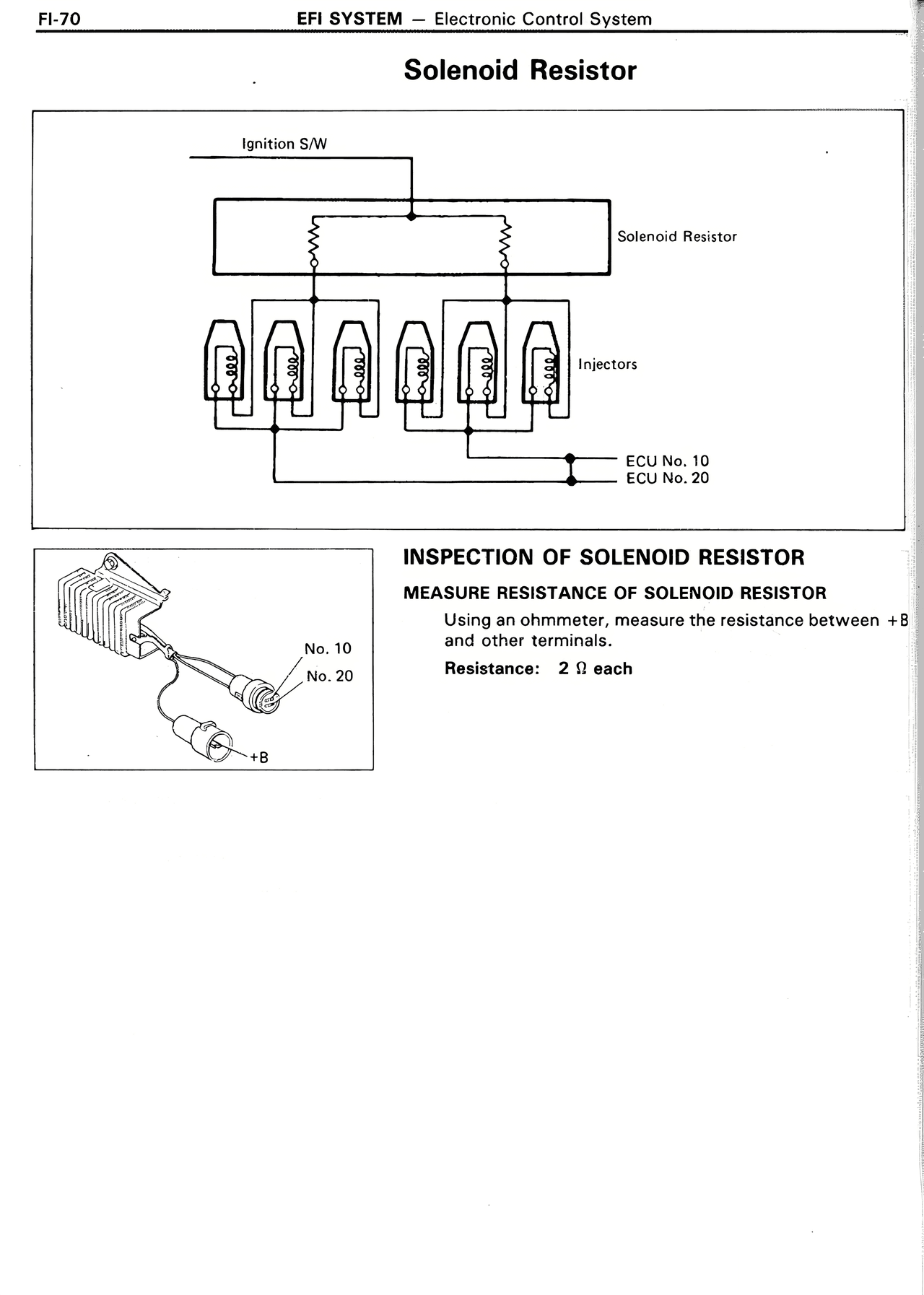

Solenoid Resistor Ignition S/W Solenoid Resistor Injectors ECU No. 10 ECU No. 20 INSPECTION OF SOLENOID RESISTOR MEASURE RESISTANCE OF SOLENOID RESISTOR Using an ohmmeter, measure the resistance between +B and other terminals. Resistance: 2 Ω each No. 10 No. 20 +B
