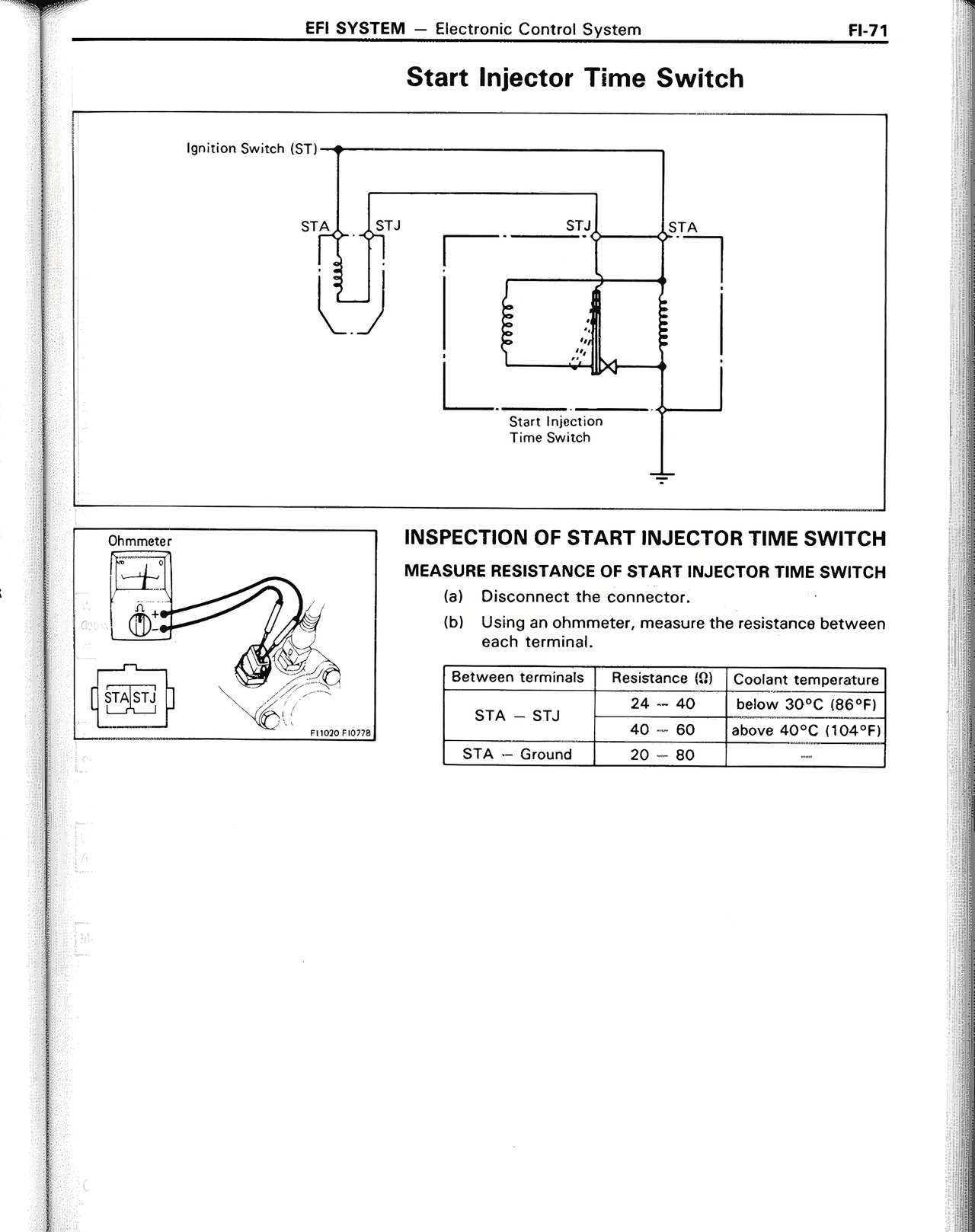

Start Injector Time Switch
Ignition Switch (ST)
STA — STJ
STJ
STA
Start Injection
Time Switch
Ohmmeter
STA/STJ
F10095F2076
INSPECTION OF START INJECTOR TIME SWITCH
MEASURE RESISTANCE OF START INJECTOR TIME SWITCH
(a) Disconnect the connector.
(b) Using an ohmmeter, measure the resistance between
each terminal.
Between terminals | Resistance (Ω) | Coolant temperature
STA — STJ | 24 — 40 | below 30°C (86°F)
| 40 — 60 | above 40°C (104°F)
STA — Ground | 20 — 80 |
