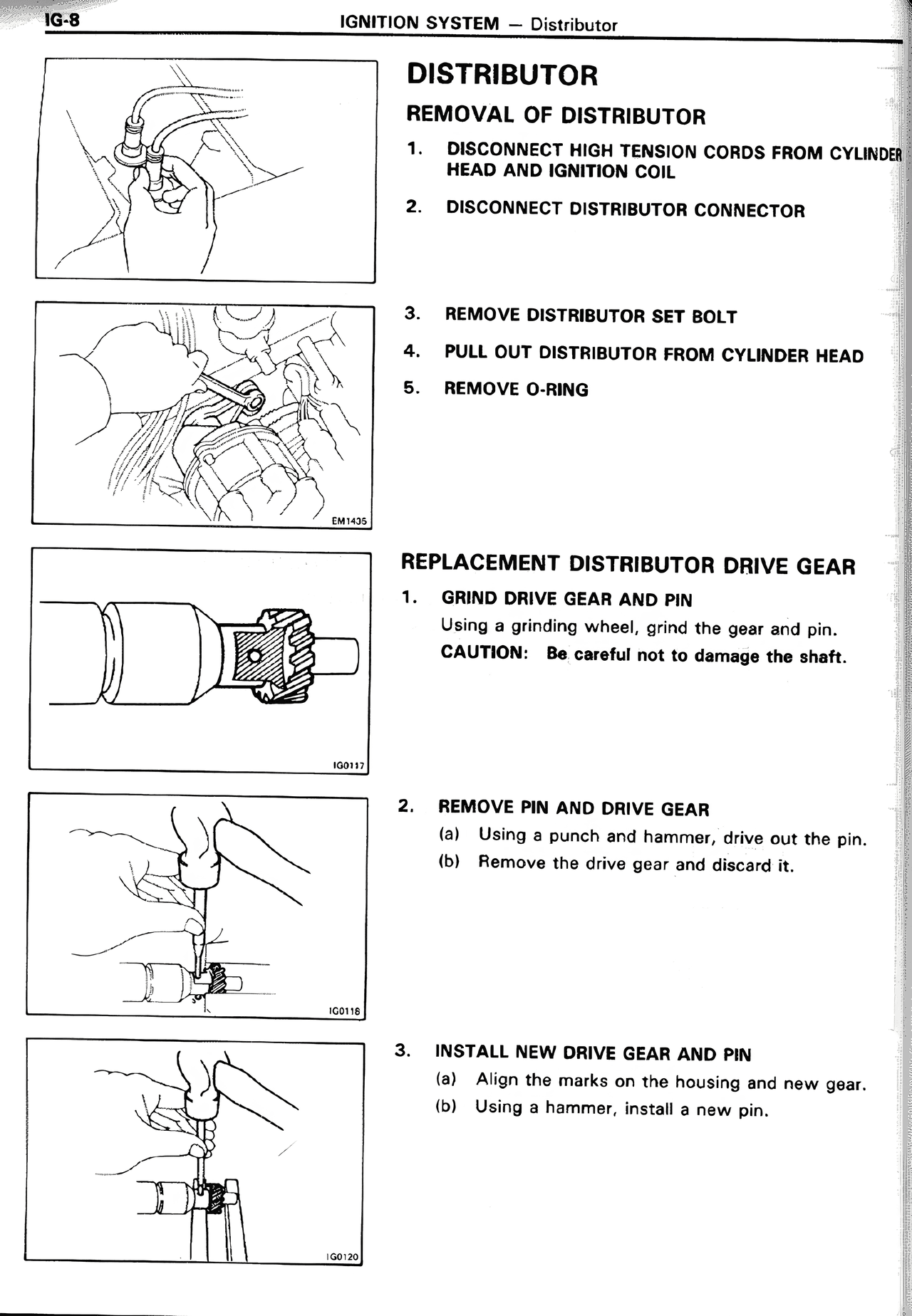

DISTRIBUTOR
REMOVAL OF DISTRIBUTOR
1. DISCONNECT HIGH TENSION CORDS FROM CYLINDER HEAD AND IGNITION COIL
2. DISCONNECT DISTRIBUTOR CONNECTOR
3. REMOVE DISTRIBUTOR SET BOLT
4. PULL OUT DISTRIBUTOR FROM CYLINDER HEAD
5. REMOVE O-RING
REPLACEMENT DISTRIBUTOR DRIVE GEAR
1. GRIND DRIVE GEAR AND PIN
Using a grinding wheel, grind the gear and pin.
CAUTION: Be careful not to damage the shaft.
2. REMOVE PIN AND DRIVE GEAR
(a) Using a punch and hammer, drive out the pin.
(b) Remove the drive gear and discard it.
3. INSTALL NEW DRIVE GEAR AND PIN
(a) Align the marks on the housing and new gear.
(b) Using a hammer, install a new pin.
