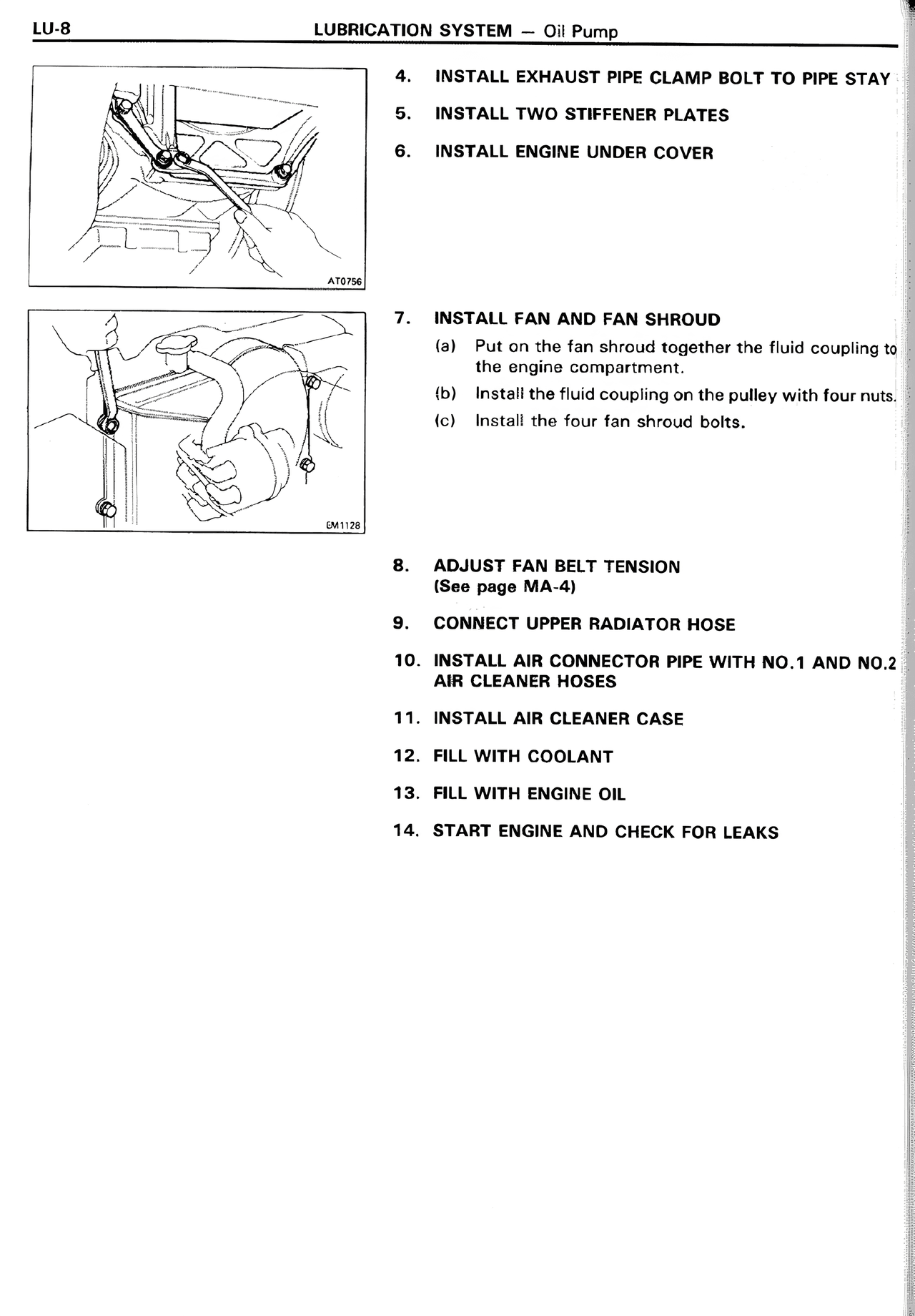

4. INSTALL EXHAUST PIPE CLAMP BOLT TO PIPE STAY
5. INSTALL TWO STIFFENER PLATES
6. INSTALL ENGINE UNDER COVER
7. INSTALL FAN AND FAN SHROUD
(a) Put on the fan shroud together the fluid coupling to the engine compartment.
(b) Install the fluid coupling on the pulley with four nuts.
(c) Install the four fan shroud bolts.
8. ADJUST FAN BELT TENSION
(See page MA-4)
9. CONNECT UPPER RADIATOR HOSE
10. INSTALL AIR CONNECTOR PIPE WITH NO.1 AND NO.2 AIR CLEANER HOSES
11. INSTALL AIR CLEANER CASE
12. FILL WITH COOLANT
13. FILL WITH ENGINE OIL
14. START ENGINE AND CHECK FOR LEAKS
