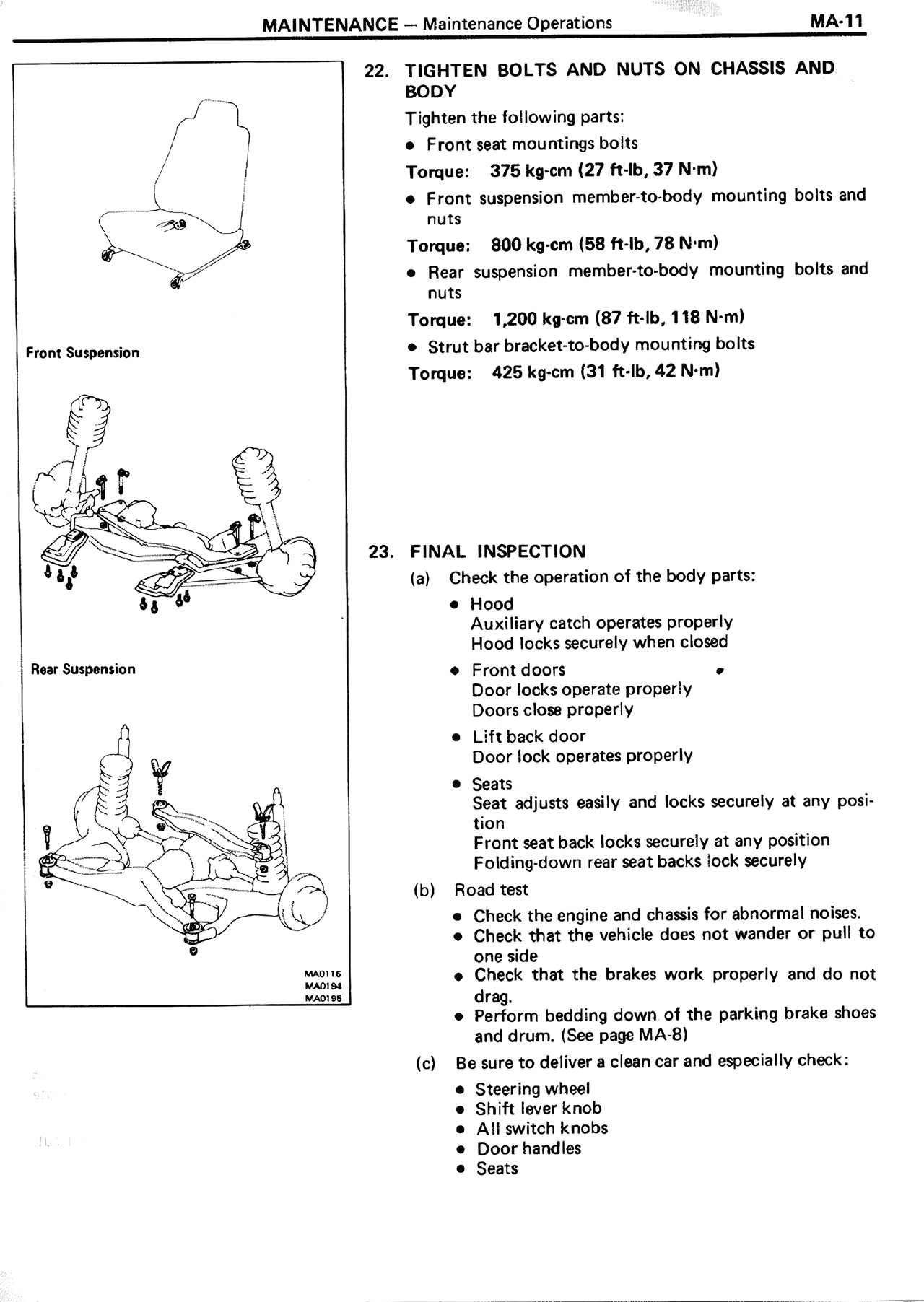

MAINTENANCE — Maintenance Operations — MK2 Supra Maintenance, page 11
100%
22. TIGHTEN BOLTS AND NUTS ON CHASSIS AND BODY Tighten the following parts: • Front seat mounting bolts Torque: 375 kg-cm (27 ft-lb, 37 N·m) • Front suspension member-to-body mounting bolts and nuts Torque: 800 kg-cm (58 ft-lb, 78 N·m) • Rear suspension member-to-body mounting bolts and nuts Torque: 1,200 kg-cm (87 ft-lb, 118 N·m) • Strut bar bracket-to-body mounting bolts Torque: 425 kg-cm (31 ft-lb, 42 N·m) 23. FINAL INSPECTION (a) Check the operation of the body parts: • Hood Auxiliary catch operates properly Hood locks securely when closed • Front doors Door locks operate properly Doors close properly • Lift back door Door lock operates properly • Seats Seat adjusts easily and locks securely at any position Front seat back locks securely at any position Folding-down rear seat backs lock securely (b) Road test • Check the engine and chassis for abnormal noises. • Check that the vehicle does not wander or pull to one side • Check that the brakes work properly and do not drag • Perform bedding down of the parking brake shoes and drum. (See page MA-8) (c) Be sure to deliver a clean car and especially check: • Steering wheel • Shift lever knob • All switch knobs • Door handles • Seats
