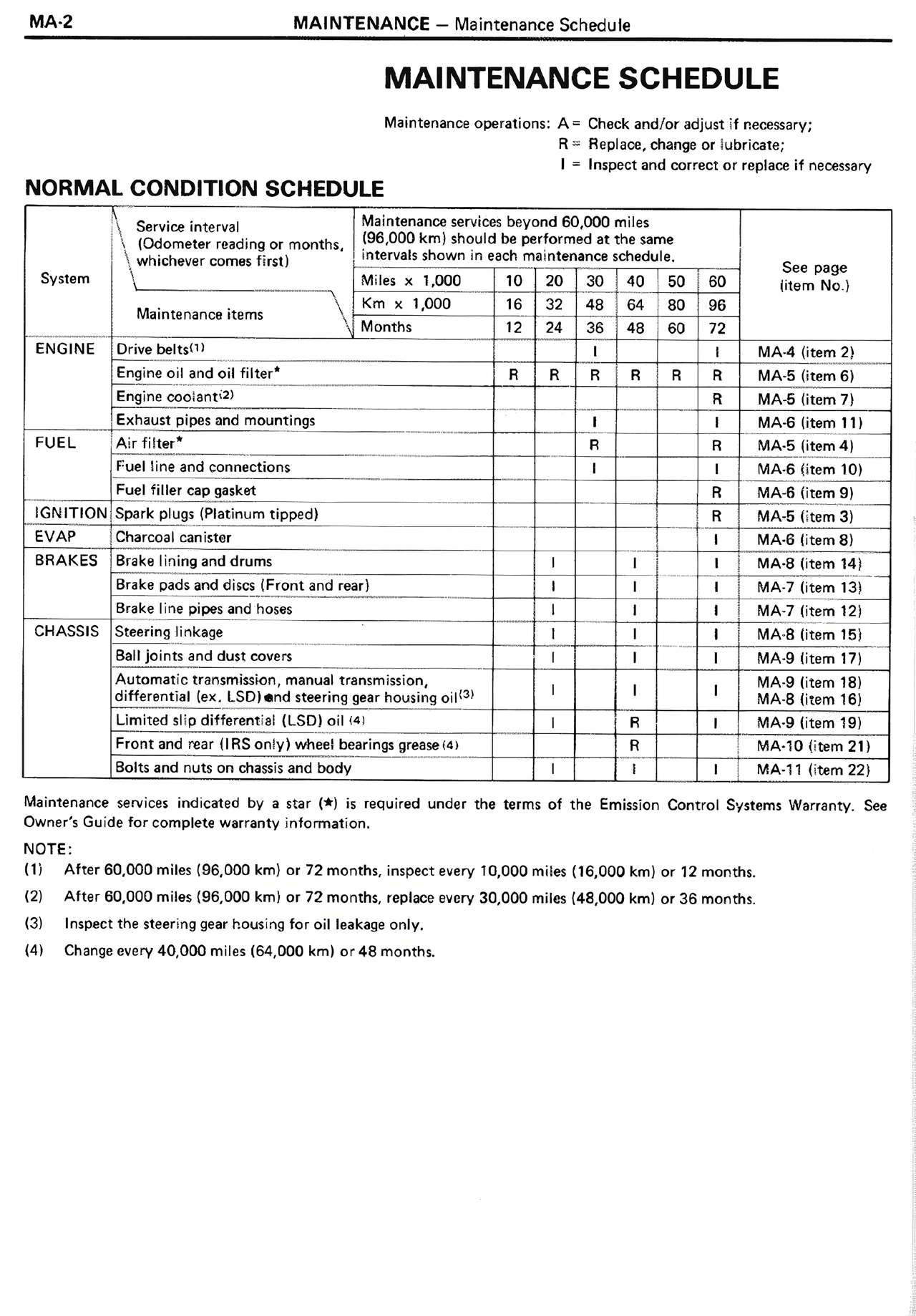

MAINTENANCE SCHEDULE Maintenance operations: A = Check and/or adjust if necessary; R = Replace, change or lubricate; I = Inspect and correct or replace if necessary NORMAL CONDITION SCHEDULE Service interval (Odometer reading or months, whichever comes first) Maintenance service beyond 60,000 miles (96 000 km) should be performed at the same intervals shown in each maintenance schedule. System Maintenance items Miles x 1,000 10 20 30 40 50 60 See page (item No.) Km x 1,000 16 32 48 64 80 96 Months 12 24 36 48 60 72 ENGINE Drive belts(1) MA-4 (item 2) Engine oil and oil filter* R R R R R R MA-5 (item 6) Engine coolant(2) I R MA-5 (item 7) Exhaust pipes and mountings I I MA-6 (item 11) FUEL Air filter R R MA-5 (item 4) Fuel line and connections I I MA-6 (item 10) Fuel filler cap gasket R MA-6 (item 9) IGNITION Spark plugs (Platinum gap spec) R MA-5 (item 3) EVAP Charcoal canister I MA-6 (item 8) BRAKES Brake lining and drums I I I MA-8 (item 14) Brake pads and discs (Front and rear) I I I MA-7 (item 13) Brake line pipes and hoses I I I MA-7 (item 12) CHASSIS Steering linkage I I I MA-8 (item 15) Ball joints and dust covers I I I MA-9 (item 17) Automatic transmission, manual transmission, differential (ex. LSD) and steering gear housing oil(3) I I I MA-9 (item 18) MA-8 (item 16) Limited slip differential (LSD) oil(4) I R I MA-9 (item 19) Front and rear (IRS only) wheel bearings grease (4) R R MA-10 (item 21) Bolts and nuts on chassis and body I I MA-11 (item 22) Maintenance services indicated by a star (*) is required under the terms of the Emission Control Systems Warranty. See Owner's Guide for complete warranty information. NOTE: (1) After 60,000 miles (96,000 km) or 72 months, inspect every 10,000 miles (16,000 km) or 12 months. (2) After 60,000 miles (96,000 km) or 72 months, replace every 30,000 miles (48,000 km) or 36 months. (3) Inspect the steering gear housing for oil leakage only. (4) Change every 40,000 miles (64,000 km) or 48 months.
