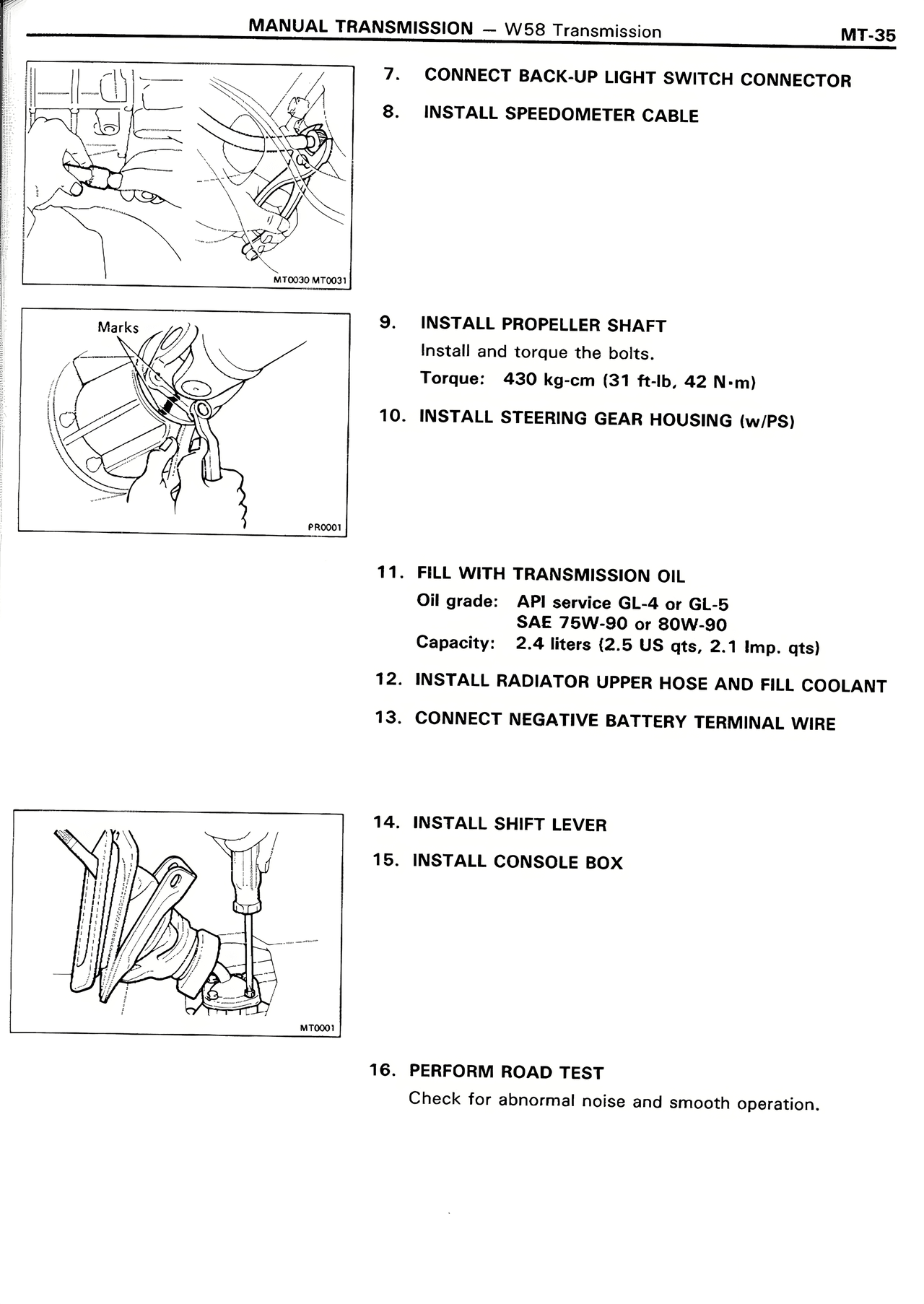

7. CONNECT BACK-UP LIGHT SWITCH CONNECTOR
8. INSTALL SPEEDOMETER CABLE
9. INSTALL PROPELLER SHAFT
Install and torque the bolts.
Torque: 430 kg-cm (31 ft-lb, 42 N-m)
10. INSTALL STEERING GEAR HOUSING (w/PS)
11. FILL WITH TRANSMISSION OIL
Oil grade: API service GL-4 or GL-5
SAE 75W-80 or 80W-90
Capacity: 2.4 liters (2.5 US qts, 2.1 Imp. qts)
12. INSTALL RADIATOR UPPER HOSE AND FILL COOLANT
13. CONNECT NEGATIVE BATTERY TERMINAL WIRE
14. INSTALL SHIFT LEVER
15. INSTALL CONSOLE BOX
16. PERFORM ROAD TEST
Check for abnormal noise and smooth operation.
