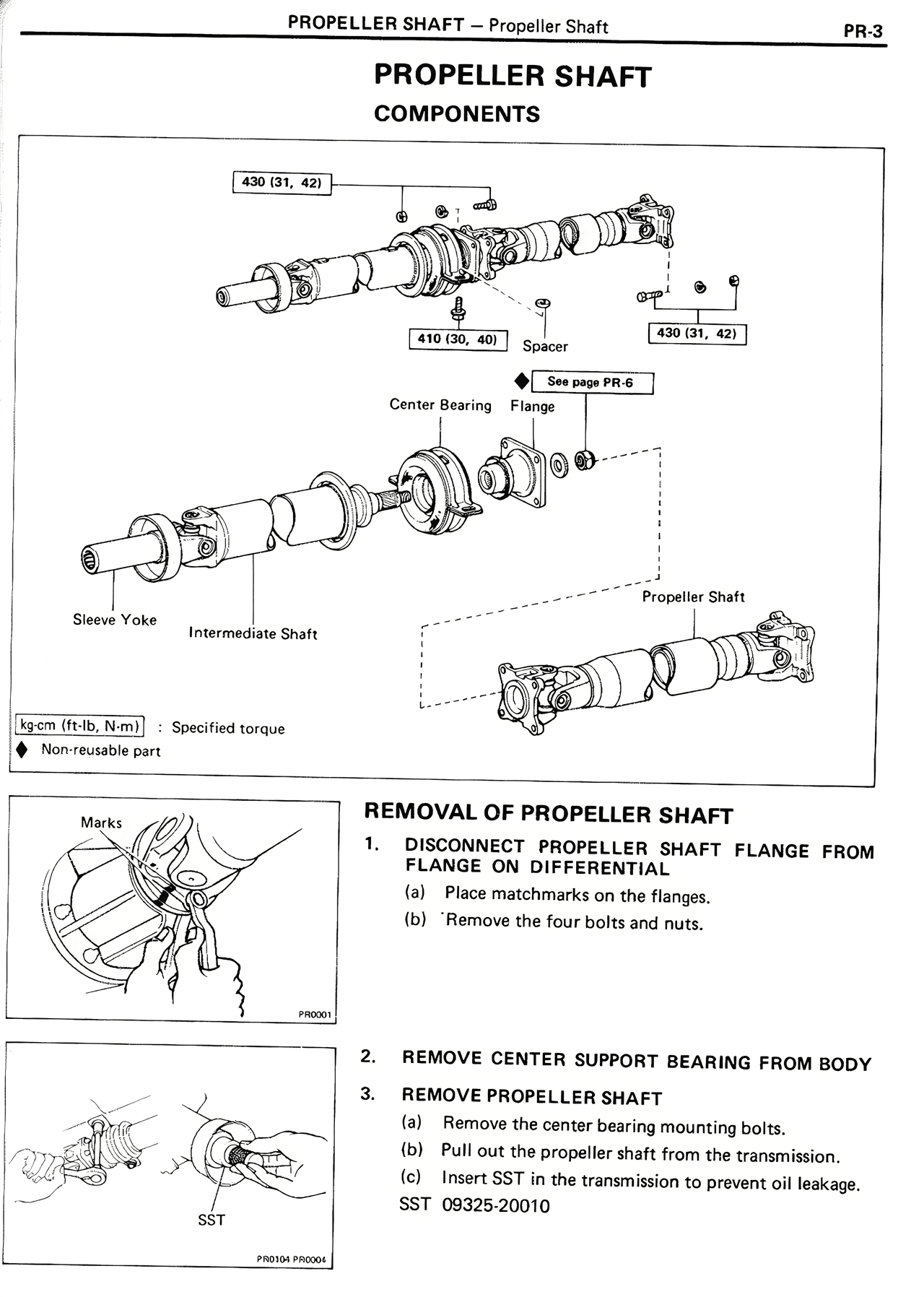

PROPELLER SHAFT
COMPONENTS
430 [31, 42]
410 [30, 40]
Spacer
430 [31, 42]
See page PR-6
Center Bearing
Flange
Propeller Shaft
Sleeve Yoke
Intermediate Shaft
kg·cm (ft·lb, N·m) : Specified torque
◆ Non-reusable part
REMOVAL OF PROPELLER SHAFT
1. DISCONNECT PROPELLER SHAFT FLANGE FROM FLANGE ON DIFFERENTIAL
(a) Place matchmarks on the flanges.
(b) Remove the four bolts and nuts.
Marks
PR0001
2. REMOVE CENTER SUPPORT BEARING FROM BODY
3. REMOVE PROPELLER SHAFT
(a) Remove the center bearing mounting bolts.
(b) Pull out the propeller shaft from the transmission.
(c) Insert SST in the transmission to prevent oil leakage.
SST 09325-20010
SST
PR0104 PR0004
