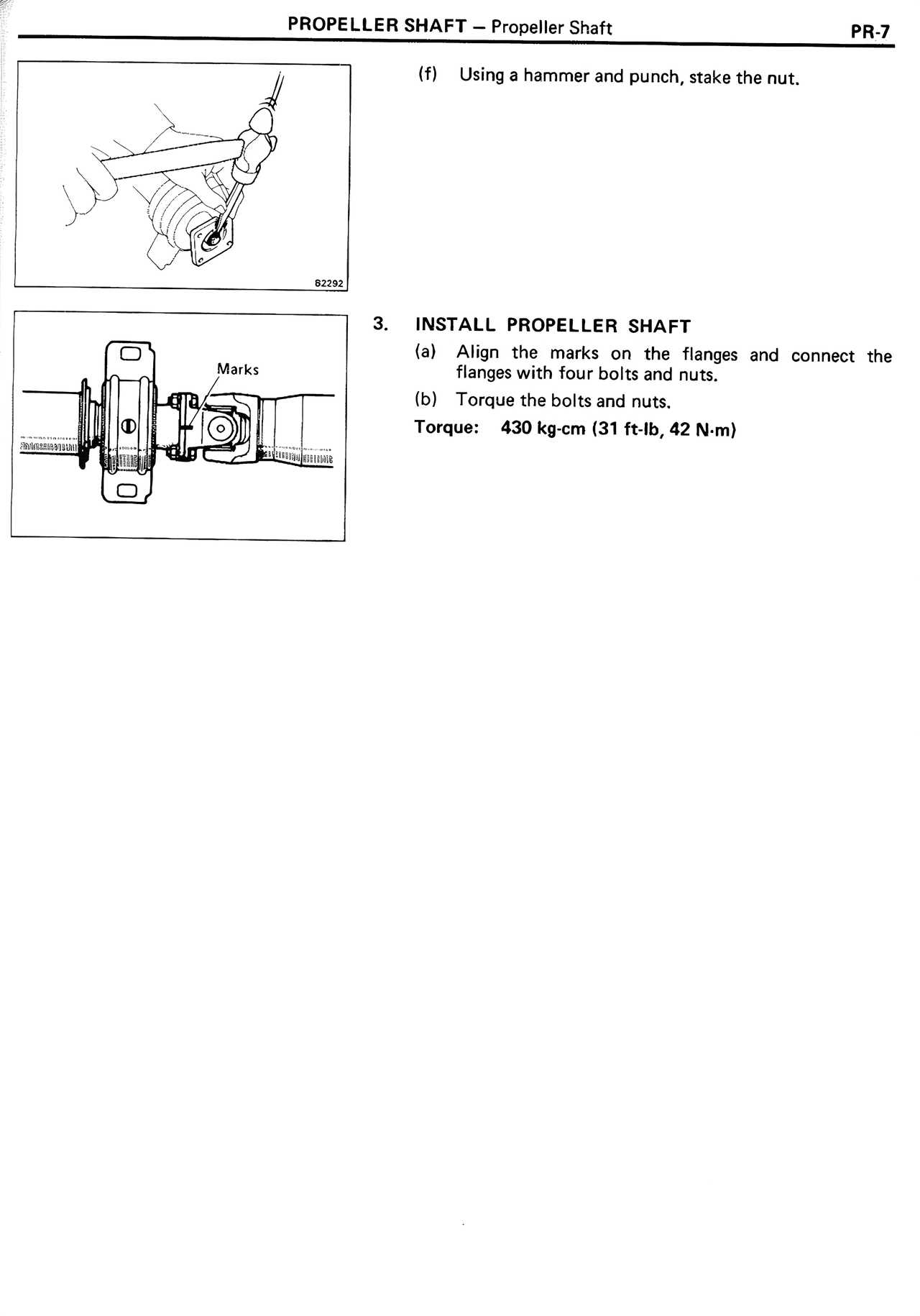

PROPELLER SHAFT — Propeller Shaft — MK2 Supra Propeller Shaft, page 7
100%
PROPELLER SHAFT — Propeller Shaft PR-7 (f) Using a hammer and punch, stake the nut. 3. INSTALL PROPELLER SHAFT (a) Align the marks on the flanges and connect the flanges with four bolts and nuts. (b) Torque the bolts and nuts. Torque: 430 kg-cm (31 ft-lb, 42 N-m) Marks
