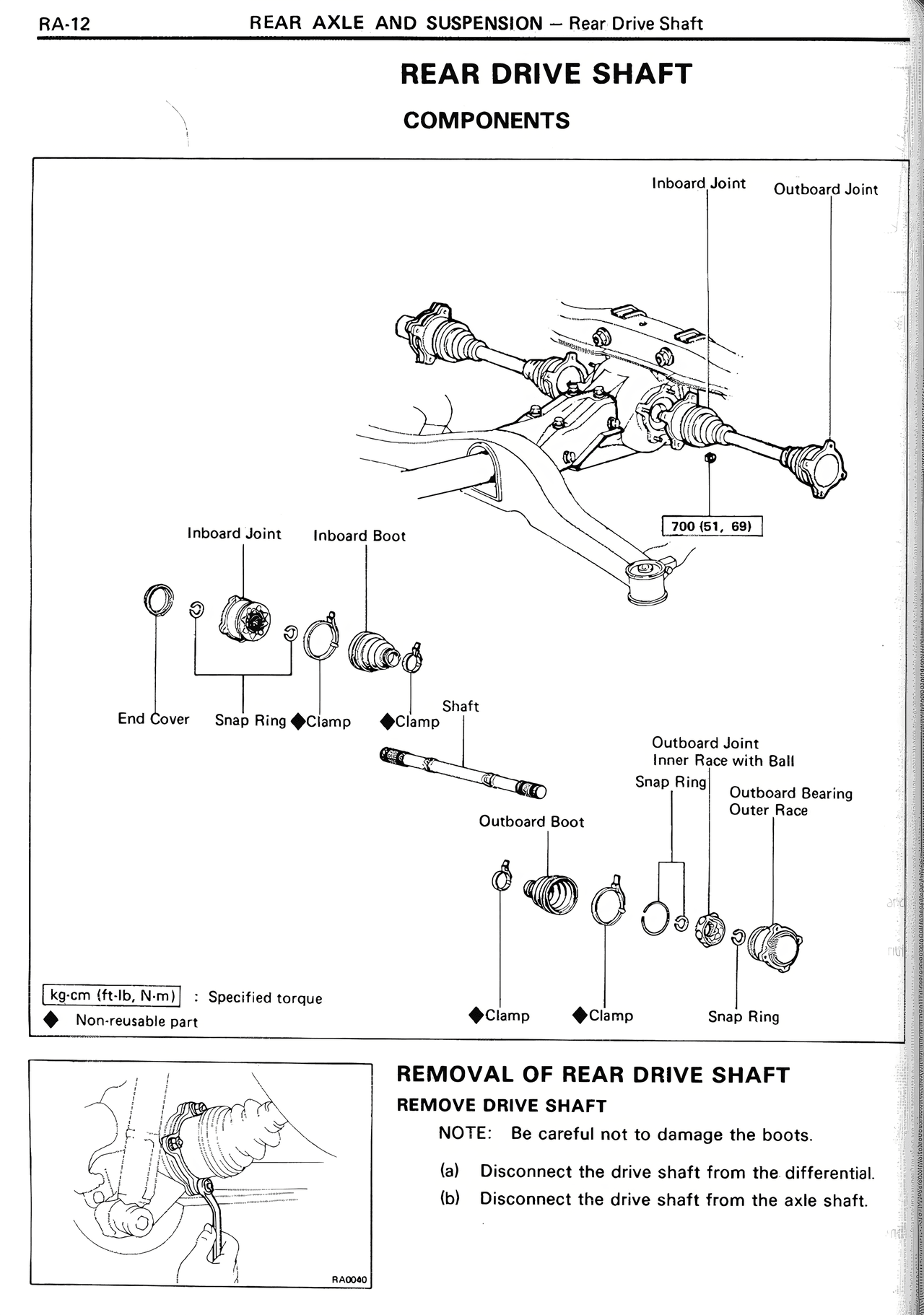

RA/Rear Axle And Suspension — Rear Drive Shaft, page 12

REAR DRIVE SHAFT

COMPONENTS

Inboard Joint
Outboard Joint

Inboard Joint
Inboard Boot
700 (51, 69)

End Cover
Snap Ring
Clamp
Clamp
Shaft
Outboard Joint
Inner Race with Ball
Snap Ring
Outboard Bearing
Outer Race
Outboard Boot

kg·cm (ft·lb, N·m) : Specified torque
◆ Non-reusable part
◆Clamp
◆Clamp
Snap Ring

REMOVAL OF REAR DRIVE SHAFT

REMOVE DRIVE SHAFT

NOTE: Be careful not to damage the boots.

(a) Disconnect the drive shaft from the differential.
(b) Disconnect the drive shaft from the axle shaft.

RA0040
