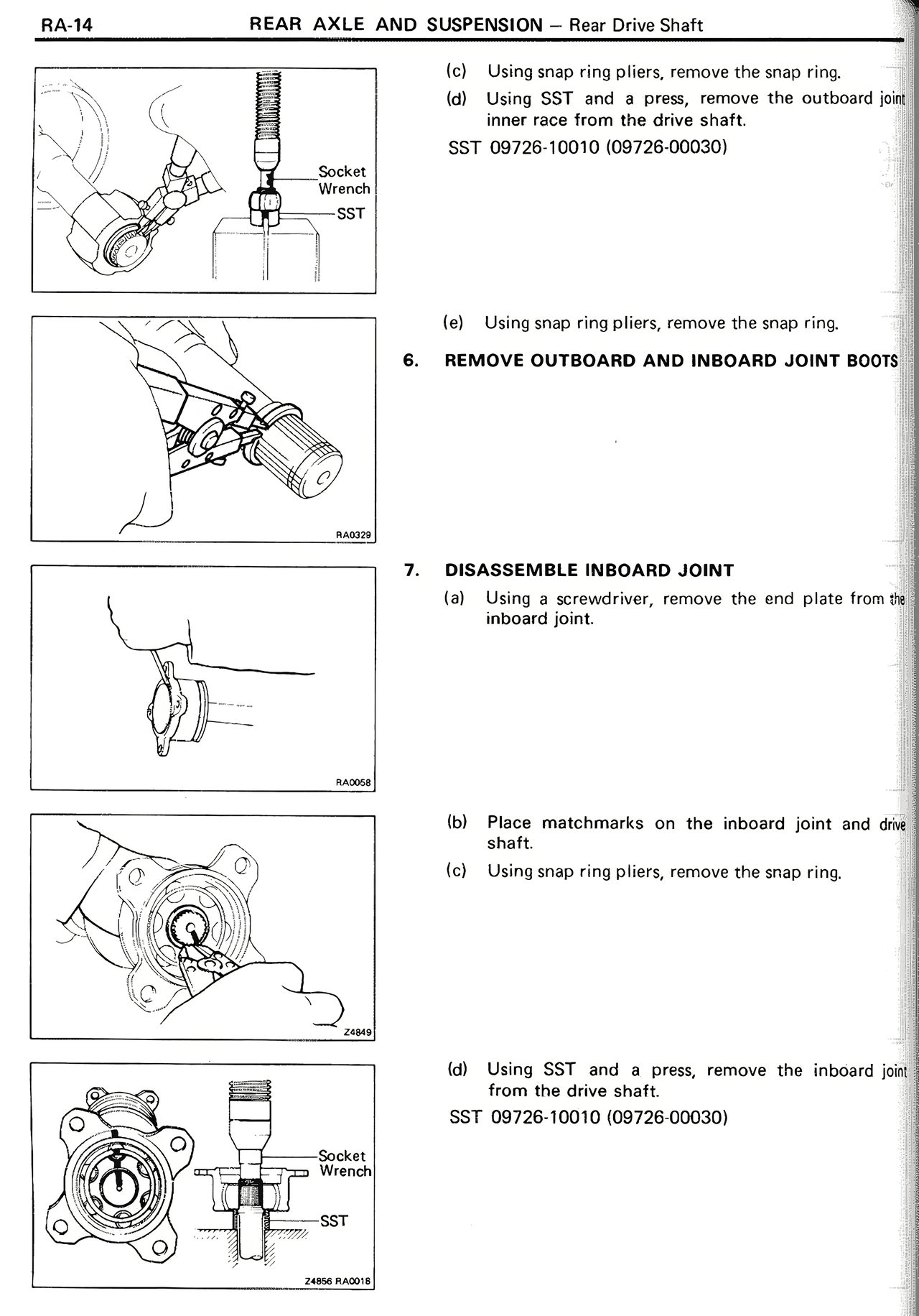

REAR AXLE AND SUSPENSION — Rear Drive Shaft — MK2 Supra Rear Axle And Suspension, page 14
100%
RA-14 REAR AXLE AND SUSPENSION — Rear Drive Shaft (c) Using snap ring pliers, remove the snap ring. (d) Using SST and a press, remove the outboard joint inner race from the drive shaft. SST 09726-10010 (09726-00030) (e) Using snap ring pliers, remove the snap ring. 6. REMOVE OUTBOARD AND INBOARD JOINT BOOTS 7. DISASSEMBLE INBOARD JOINT (a) Using a screwdriver, remove the end plate from the inboard joint. (b) Place matchmarks on the inboard joint and drive shaft. (c) Using snap ring pliers, remove the snap ring. (d) Using SST and a press, remove the inboard joint from the drive shaft. SST 09726-10010 (09726-00030)
