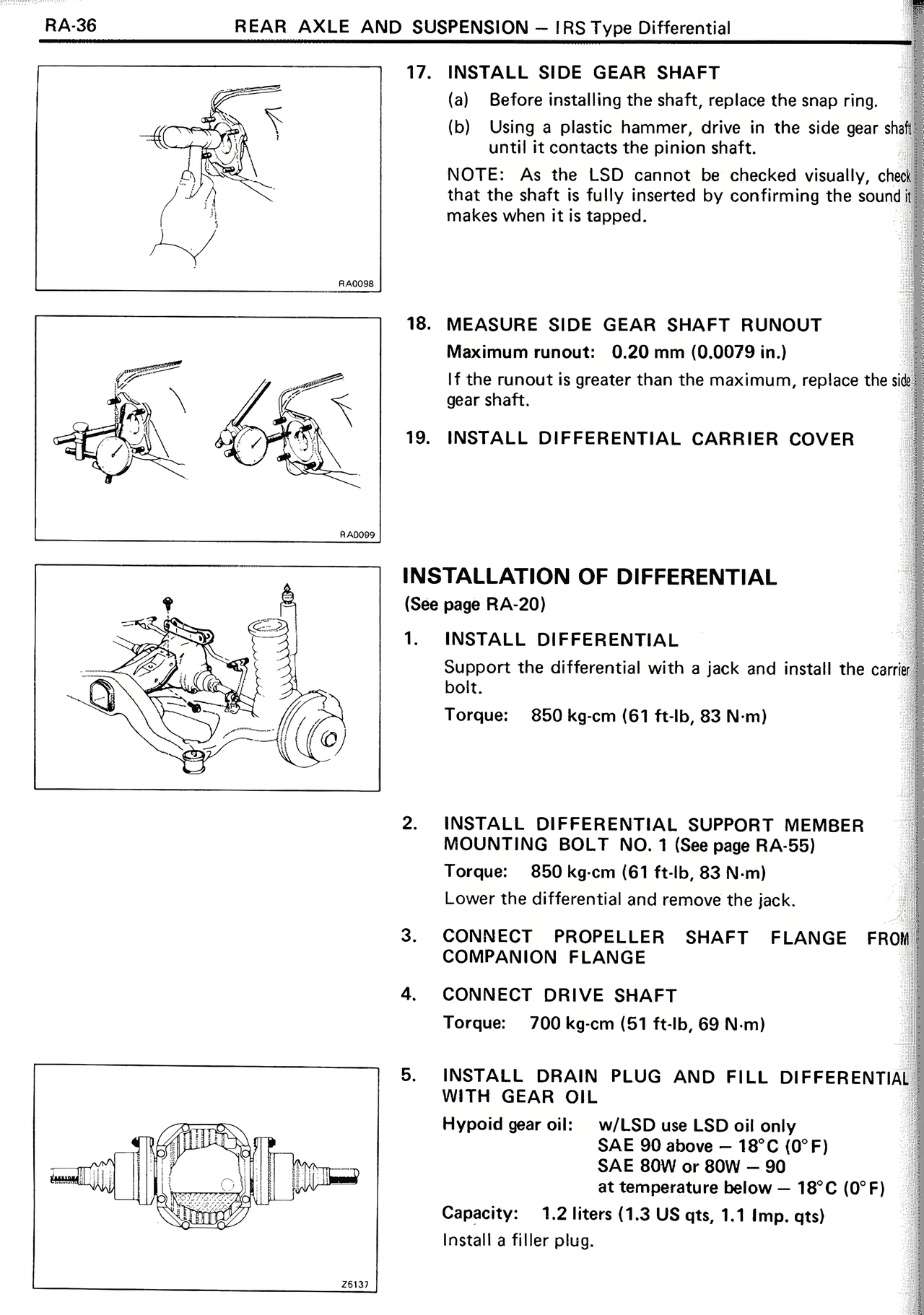

17. INSTALL SIDE GEAR SHAFT (a) Before installing the shaft, replace the snap ring. (b) Using a plastic hammer, drive in the side gear shaft until it contacts the pinion shaft. NOTE: As the LSD cannot be checked visually, check that the shaft is fully inserted by confirming the sound it makes when it is tapped. 18. MEASURE SIDE GEAR SHAFT RUNOUT Maximum runout: 0.20 mm (0.0079 in.) If the runout is greater than the maximum, replace the side gear shaft. 19. INSTALL DIFFERENTIAL CARRIER COVER INSTALLATION OF DIFFERENTIAL (See page RA-20) 1. INSTALL DIFFERENTIAL Support the differential with a jack and install the carrier bolt. Torque: 850 kg-cm (61 ft-lb, 83 N-m) 2. INSTALL DIFFERENTIAL SUPPORT MEMBER MOUNTING BOLT NO. 1 (See page RA-55) Torque: 850 kg-cm (61 ft-lb, 83 N-m) Lower the differential and remove the jack. 3. CONNECT PROPELLER SHAFT FLANGE FROM COMPANION FLANGE 4. CONNECT DRIVE SHAFT Torque: 700 kg-cm (51 ft-lb, 69 N-m) 5. INSTALL DRAIN PLUG AND FILL DIFFERENTIAL WITH GEAR OIL Hypoid gear oil: w/LSD use LSD oil only SAE 90 above — 18°C (0°F) SAE 80W or 90W — 90 at temperature below — 18°C (0°F) Capacity: 1.2 liters (1.3 US qts, 1.1 Imp. qts) Install a filler plug.
