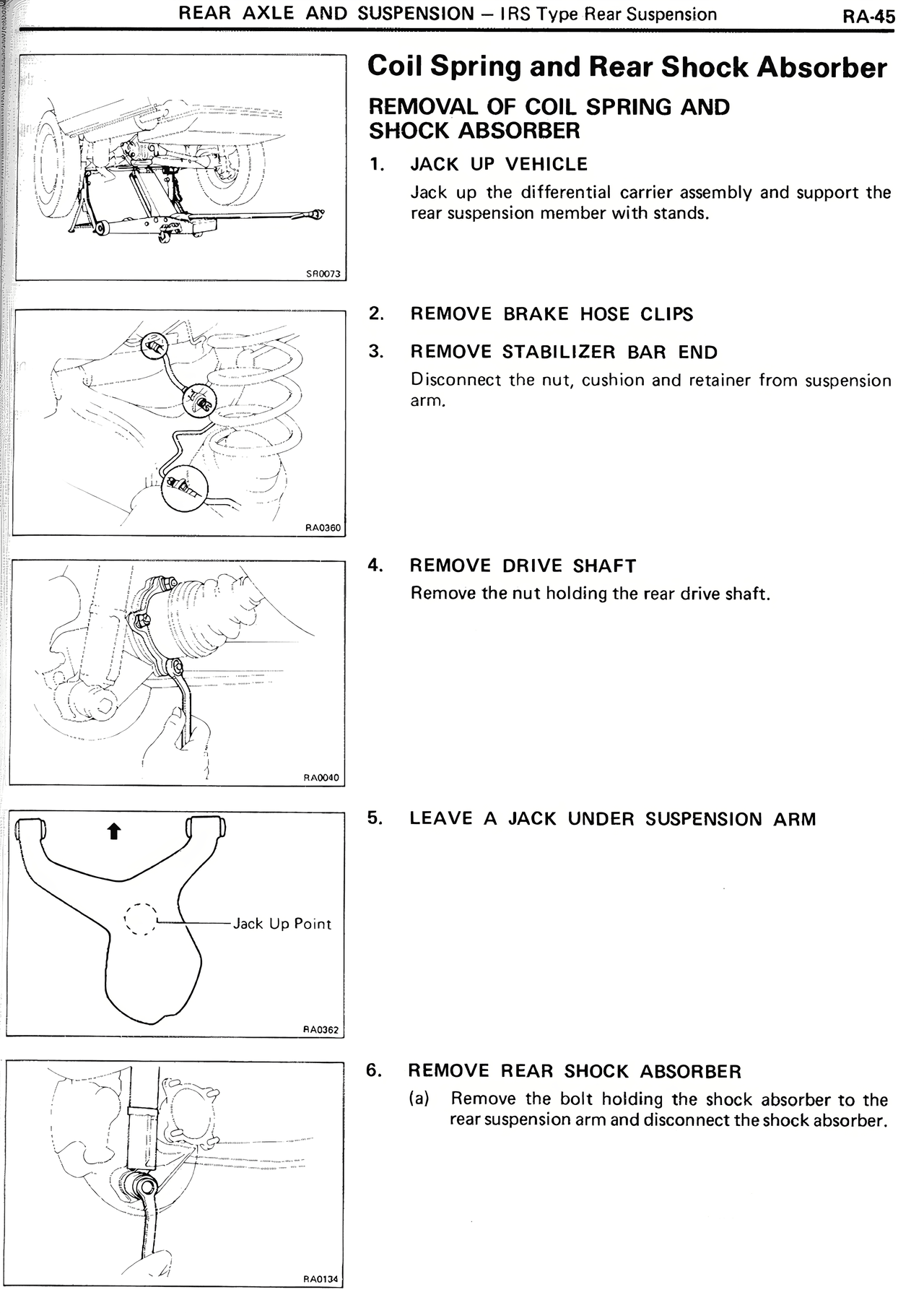

RA/Rear Axle And Suspension — Coil Spring and Rear Shock Absorber, page 45

REAR AXLE AND SUSPENSION — IRS Type Rear Suspension
RA-45

Coil Spring and Rear Shock Absorber

REMOVAL OF COIL SPRING AND
SHOCK ABSORBER

1. JACK UP VEHICLE
Jack up the differential carrier assembly and support the
rear suspension member with stands.

SI0023

2. REMOVE BRAKE HOSE CLIPS

3. REMOVE STABILIZER BAR END
Disconnect the nut, cushion and retainer from suspension
arm.

RA0400

4. REMOVE DRIVE SHAFT
Remove the nut holding the rear drive shaft.

RA0002

5. LEAVE A JACK UNDER SUSPENSION ARM

Jack Up Point

RA0362

6. REMOVE REAR SHOCK ABSORBER
(a) Remove the bolt holding the shock absorber to the
rear suspension arm and disconnect the shock absorber.

RA0134
