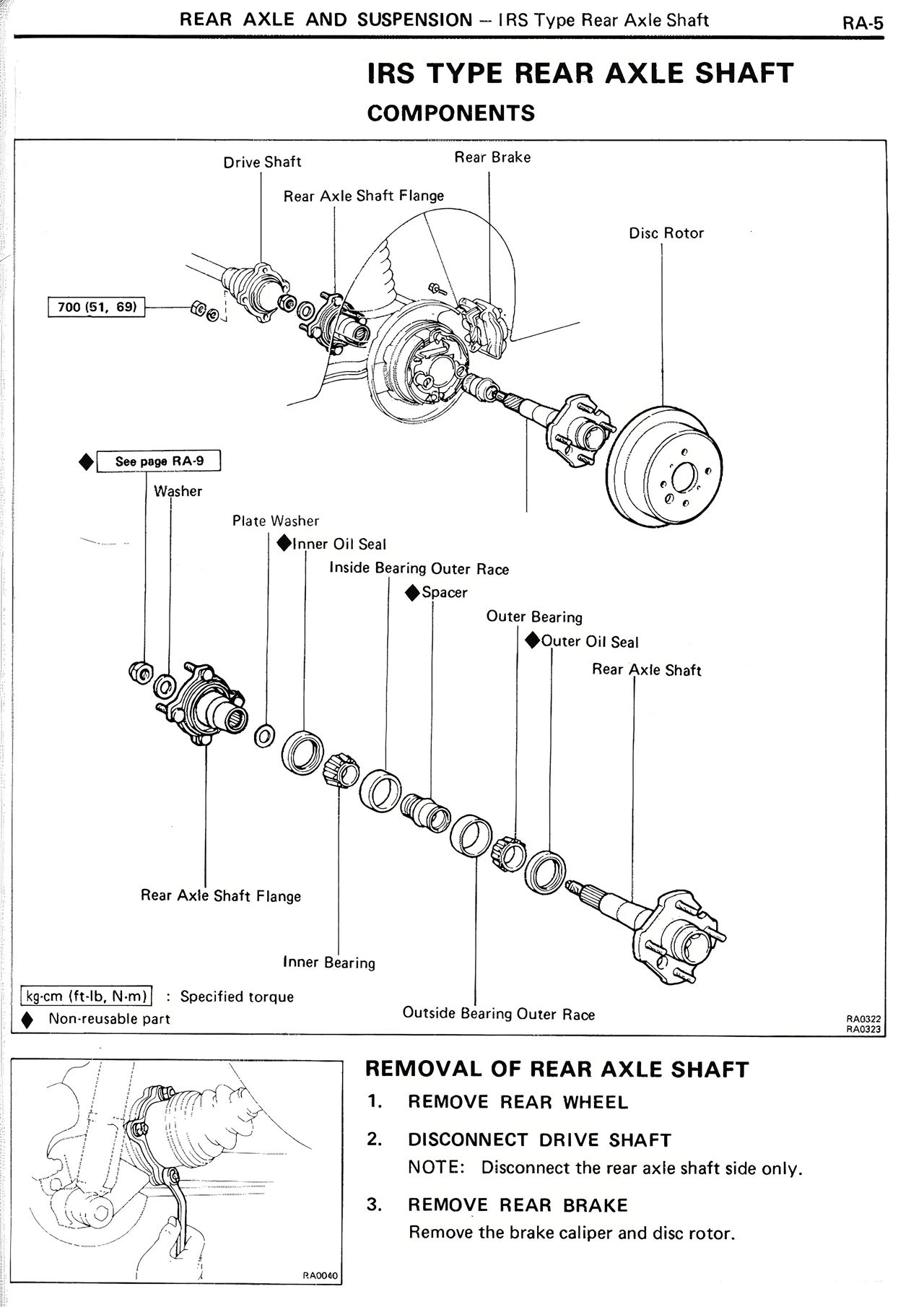

RA/Rear Axle And Suspension — Irs Type Rear Axle Shaft, page 5

IRS TYPE REAR AXLE SHAFT
COMPONENTS

Drive Shaft
Rear Brake

Rear Axle Shaft Flange

Disc Rotor

700 (51, 69)

See page RA-9

Washer
Plate Washer
Inner Oil Seal
Inside Bearing Outer Race
Spacer
Outer Bearing
Outer Oil Seal
Rear Axle Shaft

Rear Axle Shaft Flange

Inner Bearing

Outside Bearing Outer Race

kg-cm (ft-lb, N-m) : Specified torque
Non-reusable part

REMOVAL OF REAR AXLE SHAFT

1. REMOVE REAR WHEEL

2. DISCONNECT DRIVE SHAFT
NOTE: Disconnect the rear axle shaft side only.

3. REMOVE REAR BRAKE
Remove the brake caliper and disc rotor.
