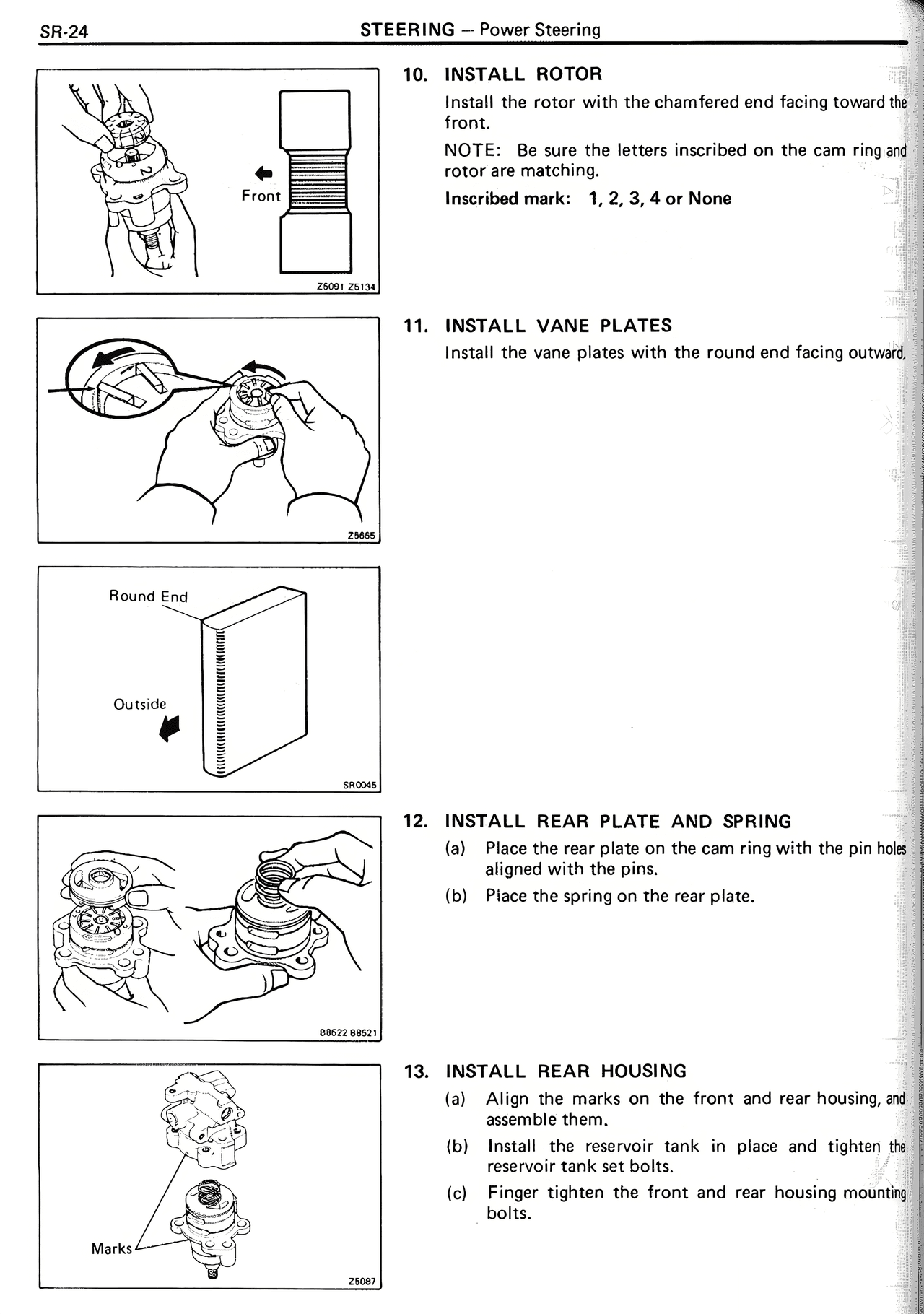

SR-24
STEERING — Power Steering
10. INSTALL ROTOR
Install the rotor with the chamfered end facing toward the front.
NOTE: Be sure the letters inscribed on the cam ring and rotor are matching.
Inscribed mark: 1, 2, 3, 4 or None
11. INSTALL VANE PLATES
Install the vane plates with the round end facing outward.
12. INSTALL REAR PLATE AND SPRING
(a) Place the rear plate on the cam ring with the pin holes aligned with pins.
(b) Place the spring on the rear plate.
13. INSTALL REAR HOUSING
(a) Align the marks on the front and rear housing, and assemble them.
(b) Install the reservoir tank in place and tighten the reservoir tank set bolts.
(c) Finger tighten the front and rear housing mounting bolts.
Z0081 Z0138
Z5605
Round End
Outside
SR0043
B8527 B8521
Marks
Z5087
