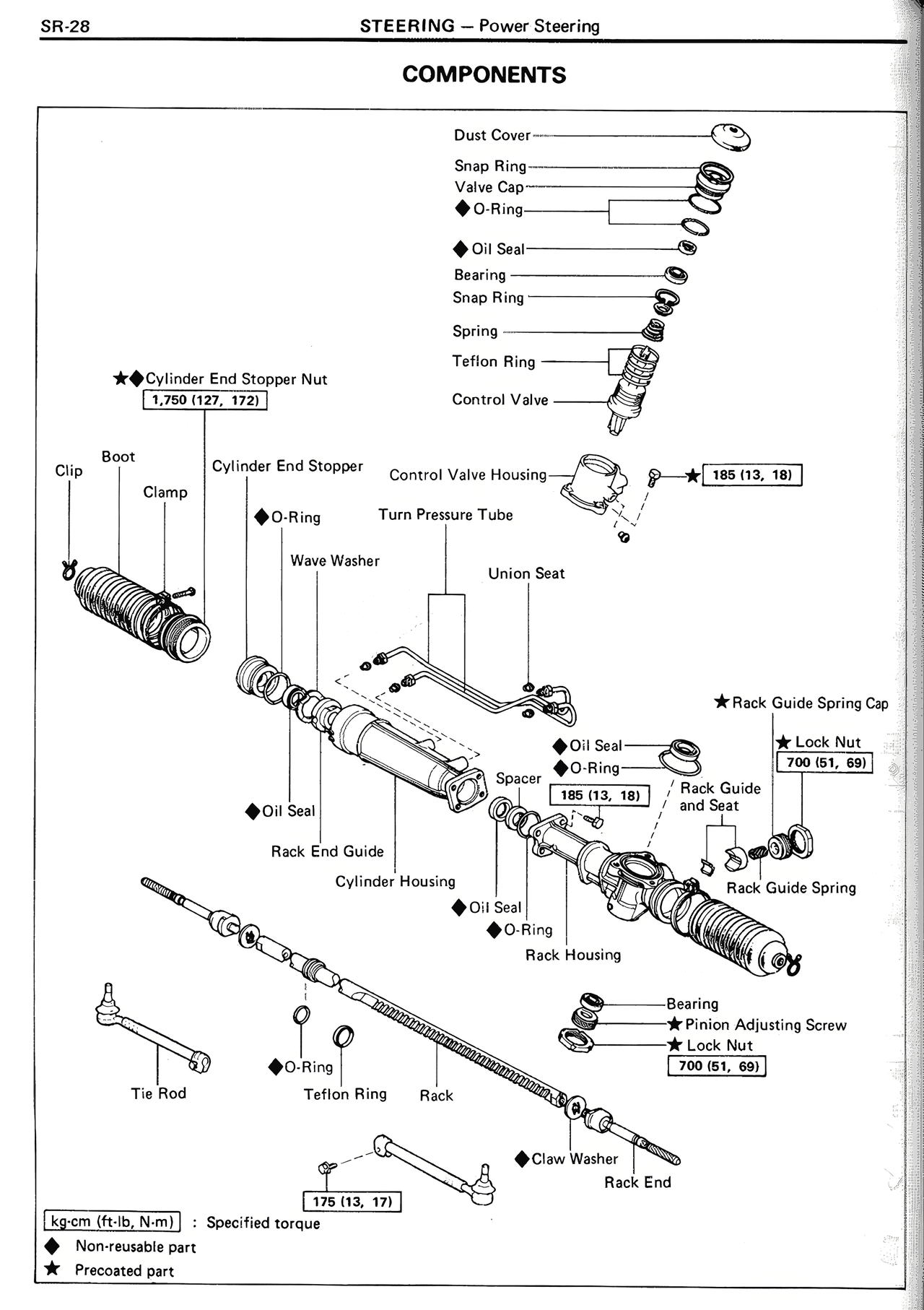

COMPONENTS
Dust Cover
Snap Ring
Valve Cap
◆O-Ring
◆Oil Seal
Bearing
Snap Ring
Spring
Teflon Ring
★◆Cylinder End Stopper Nut
1,750 [127, 127]
Control Valve
Boot
Clip
Clamp
Cylinder End Stopper
Control Valve Housing
★ 185 [13, 18]
◆O-Ring
Turn Pressure Tube
Wave Washer
Union Seat
★Rack Guide Spring Cap
◆Oil Seal
◆O-Ring
★Lock Nut
700 [51, 69]
Spacer
185 [13, 18]
Rack Guide and Seat
◆Oil Seal
Rack End Guide
Rack Guide Spring
Cylinder Housing
◆Oil Seal
◆O-Ring
Rack Housing
Bearing
★Pinion Adjusting Screw
★Lock Nut
700 [51, 69]
Tie Rod
◆O-Ring
Teflon Ring
Rack
◆Claw Washer
Rack End
175 [13, 17]
kg·cm [ft·lb, N·m] : Specified torque
◆ Non-reusable part
★ Precoated part
