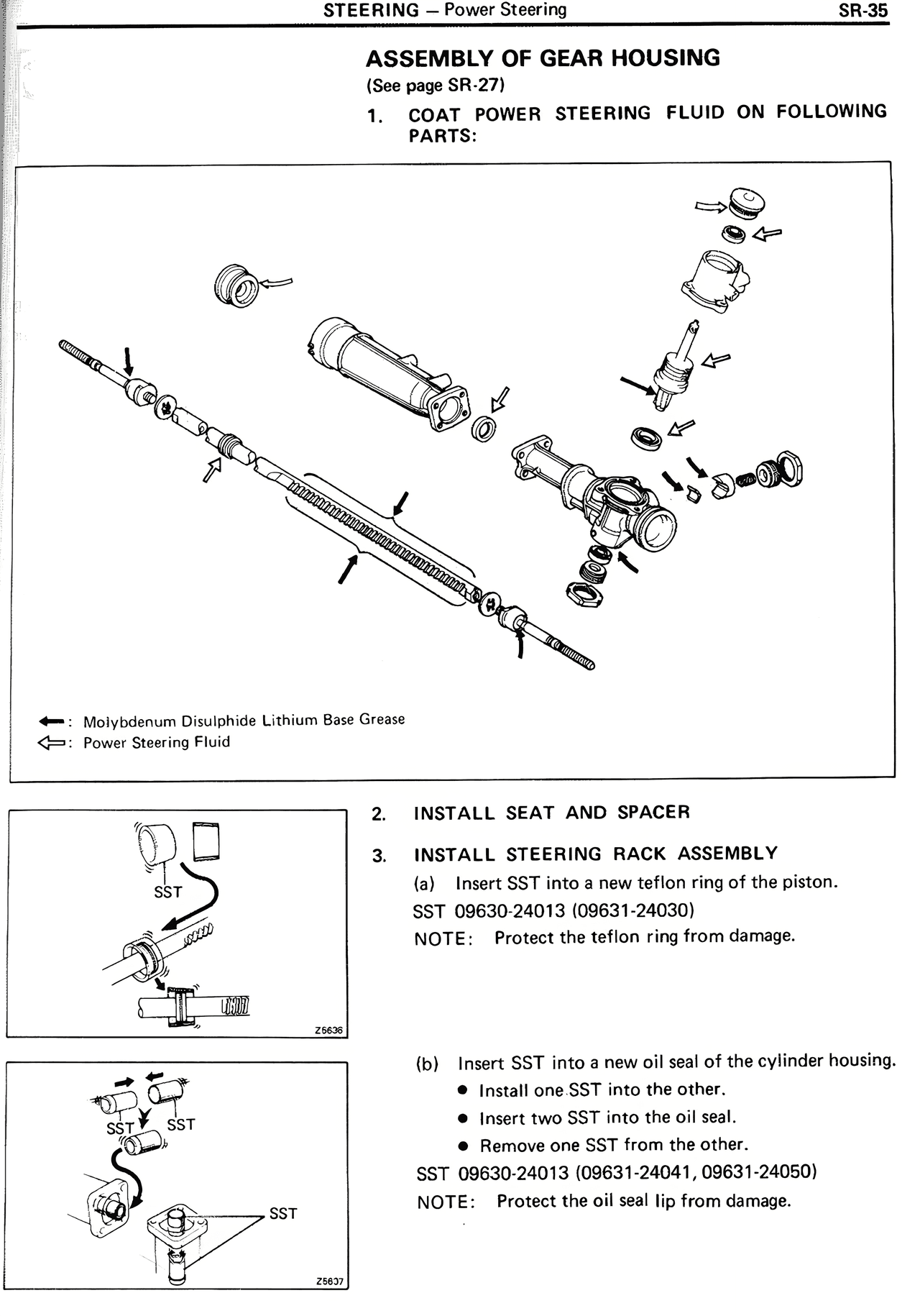

ASSEMBLY OF GEAR HOUSING
(See page SR-27)
1. COAT POWER STEERING FLUID ON FOLLOWING PARTS:
[Diagram showing steering assembly components with arrows indicating application points]
← Molybdenum Disulphide Lithium Base Grease
⇐ Power Steering Fluid
2. INSTALL SEAT AND SPACER
3. INSTALL STEERING RACK ASSEMBLY
(a) Insert SST into a new teflon ring of the piston.
SST 09630-24013 (09631-24030)
NOTE: Protect the teflon ring from damage.
(b) Insert SST into a new oil seal of the cylinder housing.
• Install one SST into the other.
• Insert two SST into the oil seal.
• Remove one SST from the other.
SST 09630-24013 (09631-24041, 09631-24050)
NOTE: Protect the oil seal lip from damage.
