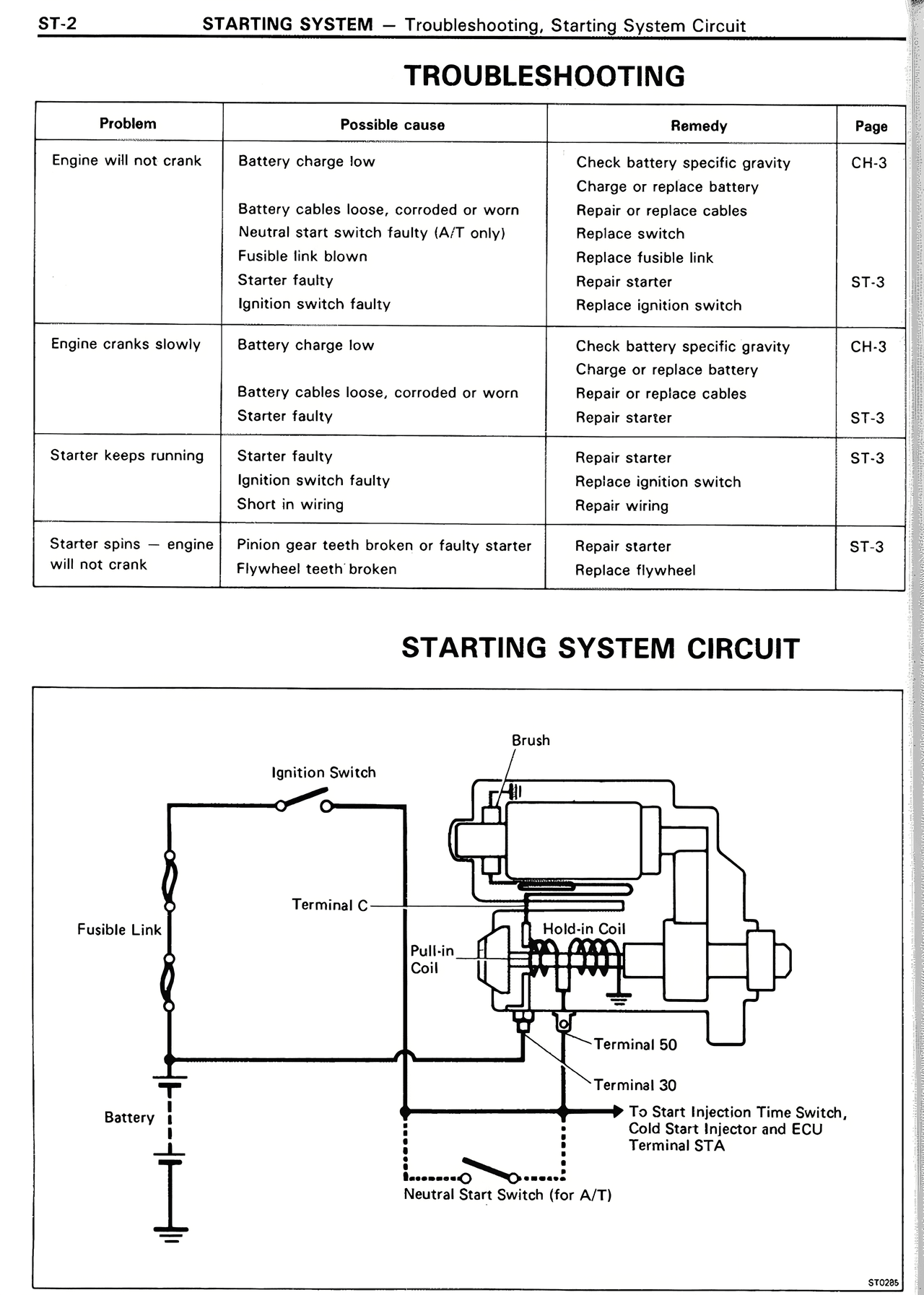

TROUBLESHOOTING
Problem | Possible cause | Remedy | Page
Engine will not crank | Battery charge low | Check battery specific gravity
Charge or replace battery | CH-3
Battery cables loose, corroded or worn | Repair or replace cables
Neutral start switch faulty (A/T only) | Replace switch
Fusible link blown | Replace fusible link
Starter faulty | Repair starter | ST-3
Ignition switch faulty | Replace ignition switch
Engine cranks slowly | Battery charge low | Check battery specific gravity
Charge or replace battery | CH-3
Battery cables loose, corroded or worn | Repair or replace cables
Starter faulty | Repair starter | ST-3
Starter keeps running | Starter faulty | Repair starter | ST-3
Ignition switch faulty | Replace ignition switch
Short in wiring | Repair wiring
Starter spins — engine will not crank | Pinion gear teeth broken or faulty starter | Repair starter | ST-3
Flywheel teeth broken | Replace flywheel
STARTING SYSTEM CIRCUIT
Brush
Ignition Switch
Terminal C
Hold-in Coil
Pull-in Coil
Fusible Link
Terminal 50
Terminal 30
To Start Injection Time Switch,
Cold Start Injector and ECU
Terminal STA
Battery
Neutral Start Switch (for A/T)
ST0261
