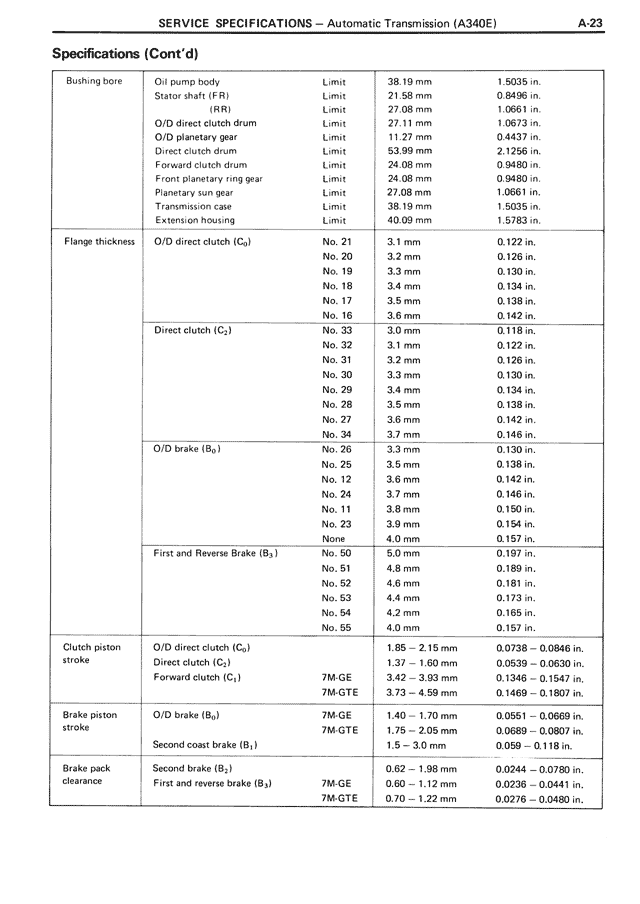

Specifications (Cont'd) Bushing bore Oil pump shaft (FR) Stator shaft (FR) Limit Limit 38.19 mm 21.58 mm 1.5035 in. 0.8496 in. Limit 27.08 mm 1.0661 in. O/D direct clutch drum Limit 27.11 mm 1.0673 in. O/D planetary gear Limit 11.27 mm 0.4437 in. Direct clutch drum Limit 53.99 mm 2.1256 in. Forward clutch drum Expansion 24.08 mm 0.9480 in. Front planetary ring gear Limit 24.08 mm 0.9480 in. Planetary sun gear Limit 27.08 mm 1.0661 in. Transmission case Limit 38.19 mm 1.5035 in. Extension housing Limit 40.09 mm 1.5783 in. Flange thickness O/D direct clutch (C₀) No. 21 3.1 mm 0.122 in. No. 20 3.2 mm 0.126 in. No. 19 3.3 mm 0.130 in. No. 18 3.4 mm 0.134 in. No. 17 3.5 mm 0.138 in. No. 16 3.6 mm 0.142 in. Direct clutch (C₂) No. 33 3.0 mm 0.118 in. No. 32 3.1 mm 0.122 in. No. 31 3.2 mm 0.126 in. No. 30 3.3 mm 0.130 in. No. 29 3.4 mm 0.134 in. No. 28 3.5 mm 0.138 in. No. 27 3.6 mm 0.142 in. No. 34 3.7 mm 0.146 in. O/D brake (B₀) No. 26 3.3 mm 0.130 in. No. 25 3.5 mm 0.138 in. No. 12 3.6 mm 0.142 in. No. 24 3.7 mm 0.146 in. No. 11 3.8 mm 0.150 in. No. 23 3.9 mm 0.154 in. None 4.0 mm 0.157 in. First and Reverse Brake (B₂) No. 50 5.0 mm 0.197 in. No. 51 4.8 mm 0.189 in. No. 52 4.6 mm 0.181 in. No. 53 4.4 mm 0.173 in. No. 54 4.2 mm 0.165 in. No. 55 4.0 mm 0.157 in. Clutch piston stroke O/D direct clutch (C₀) 1.85 - 2.15 mm 0.0738 - 0.0846 in. Direct clutch (C₂) 1.37 - 1.60 mm 0.0539 - 0.0630 in. Forward clutch (C₁) 7M-GE 3.42 - 3.93 mm 0.1346 - 0.1547 in. 7M-GTE 3.73 - 4.59 mm 0.1469 - 0.1807 in. Brake piston stroke O/D brake (B₀) 7M-GE 1.40 - 1.70 mm 0.0551 - 0.0669 in. 7M-GTE 1.75 - 2.05 mm 0.0689 - 0.0807 in. Second coast brake (B₃) 1.5 - 3.0 mm 0.059 - 0.118 in. Brake pack clearance Second brake (B₁) 0.62 - 1.98 mm 0.0244 - 0.0780 in. First and reverse brake (B₂) 7M-GE 0.60 - 1.12 mm 0.0236 - 0.0441 in. 7M-GTE 0.70 - 1.22 mm 0.0276 - 0.0480 in.
