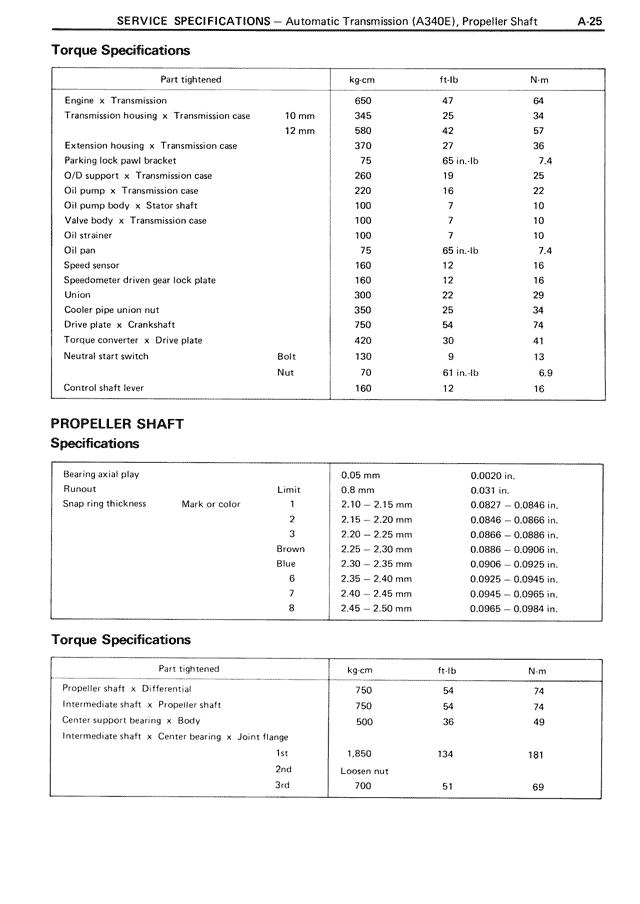

SERVICE SPECIFICATIONS - Automatic Transmission (A340E), Propeller Shaft A-25 Torque Specifications Part tightened kg·cm ft·lb N·m Engine × Transmission 650 47 64 Transmission housing × Transmission case 10 mm 345 25 34 12 mm 580 42 57 Extension housing × Transmission case 370 27 36 Parking lock pawl bracket 75 65 in.·lb 7.4 O/D support × Transmission case 260 19 25 Oil pump × Transmission case 220 16 22 Oil pump body × Stator shaft 100 7 10 Valve body × Transmission case 100 7 10 Oil strainer 100 7 10 Oil pan 75 65 in.·lb 7.4 Speed sensor 160 12 16 Speedometer driven gear lock plate 160 12 16 Union 300 22 29 Cooler pipe union nut 350 25 34 Drive plate × Crankshaft 750 54 74 Torque converter × Drive plate 420 30 41 Neutral start switch Bolt 130 9 13 Nut 70 61 in.·lb 6.9 Control shaft lever 160 12 16 PROPELLER SHAFT Specifications Bearing axial play 0.05 mm 0.0020 in. Limit 0.8 mm 0.031 in. Snap ring thickness Mark or color 1 2.10 - 2.15 mm 0.0827 - 0.0846 in. 2 2.15 - 2.20 mm 0.0846 - 0.0866 in. 3 2.20 - 2.25 mm 0.0866 - 0.0886 in. Brown 2.25 - 2.30 mm 0.0886 - 0.0906 in. Blue 2.30 - 2.35 mm 0.0906 - 0.0925 in. 6 2.35 - 2.40 mm 0.0925 - 0.0945 in. 7 2.40 - 2.45 mm 0.0945 - 0.0965 in. 8 2.45 - 2.50 mm 0.0965 - 0.0984 in. Torque Specifications Part tightened kg·cm ft·lb N·m Propeller shaft × Differential 750 54 74 Intermediate shaft × Propeller shaft 750 54 74 Center support bearing × Body 500 36 49 Intermediate shaft × Center bearing × Joint flange 1st 1,850 134 181 2nd Loosen nut 3rd 700 51 69
