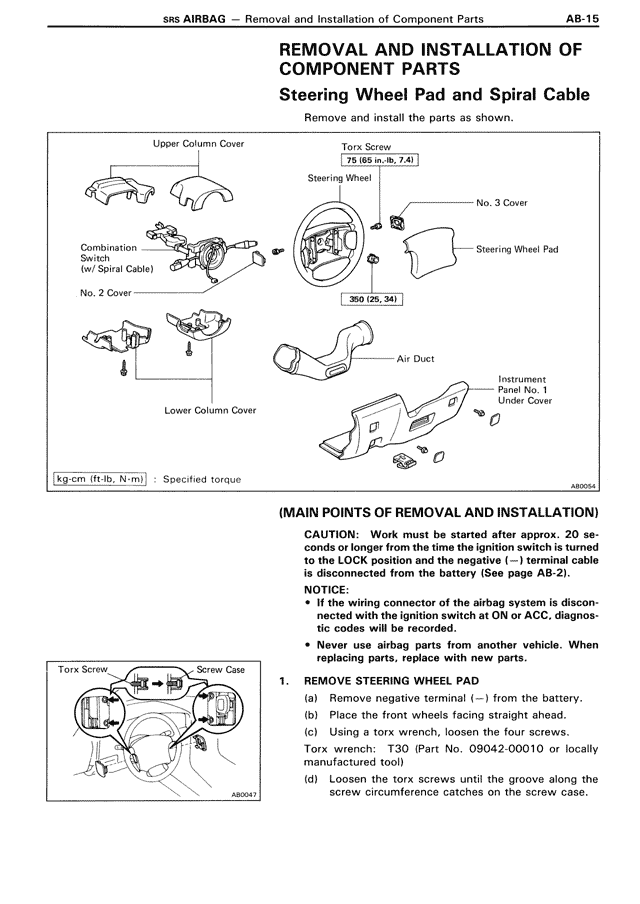

SRS AIRBAG — Removal and Installation of Component Parts AB-15
REMOVAL AND INSTALLATION OF
COMPONENT PARTS
Steering Wheel Pad and Spiral Cable
Remove and install the parts as shown.
Upper Column Cover
Torx Screw
[75 (95 in.-lb, 7.4)]
Steering Wheel
No. 3 Cover
Combination
Switch
(w/ Spiral Cable)
Steering Wheel Pad
No. 2 Cover
[350 (25, 34)]
Air Duct
Instrument
Panel No. 1
Under Cover
Lower Column Cover
[kg·cm (ft-lb, N·m)] : Specified torque
AB0054
(MAIN POINTS OF REMOVAL AND INSTALLATION)
CAUTION: Work must be started after approx. 20 seconds or longer from the time the ignition switch is turned to the LOCK position and the negative (—) terminal cable is disconnected from the battery (See page AB-2).
NOTICE:
• If the wiring connector of the airbag system is disconnected with the ignition switch at ON or ACC, diagnostic codes will be recorded.
• Never use airbag parts from another vehicle. When replacing parts, replace with new parts.
Torx Screw Screw Case
1. REMOVE STEERING WHEEL PAD
(a) Remove negative terminal (—) from the battery.
(b) Place the front wheels facing straight ahead.
(c) Using a torx wrench, loosen the four screws.
Torx wrench: T30 (Part No. 09042-00010 or locally
manufactured tool)
(d) Loosen the torx screws until the groove along the
screw circumference catches on the screw case.
AB0043
