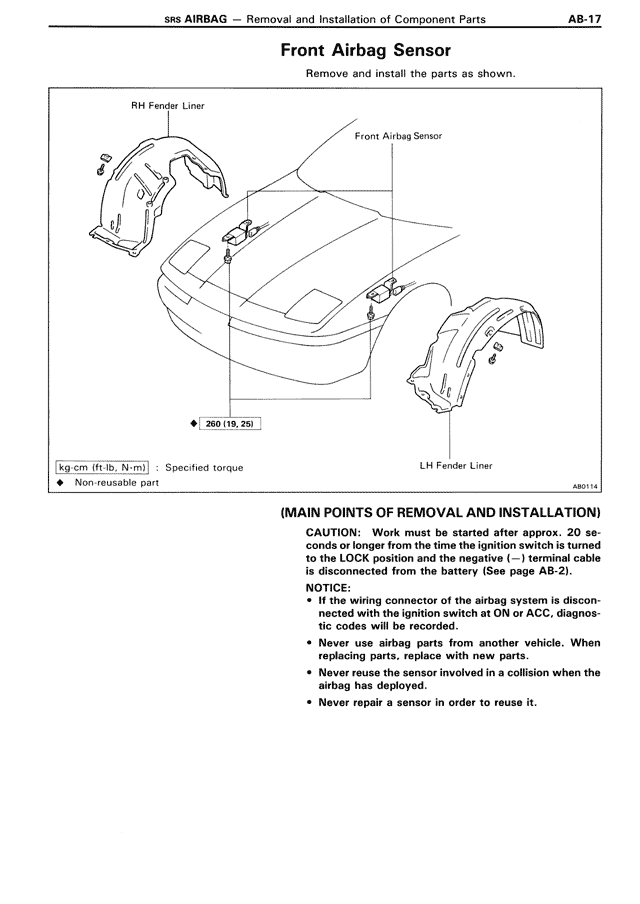

Front Airbag Sensor
Remove and install the parts as shown.
RH Fender Liner
Front Airbag Sensor
LH Fender Liner
280 (19, 26)
kg·cm (ft·lb, N·m) : Specified torque
◆ Non-reusable part
AB0114
(MAIN POINTS OF REMOVAL AND INSTALLATION)
CAUTION: Work must be started after approx. 20 seconds or longer from the time the ignition switch is turned to the LOCK position and the negative (−) terminal cable is disconnected from the battery (See page AB-2).
NOTICE:
• If the wiring connector of the airbag system is disconnected with the ignition switch at ON or ACC, diagnostic codes will be recorded.
• Never use airbag parts from another vehicle. When replacing parts, replace with new parts.
• Never reuse the sensor involved in a collision when the airbag has deployed.
• Never repair a sensor in order to reuse it.
