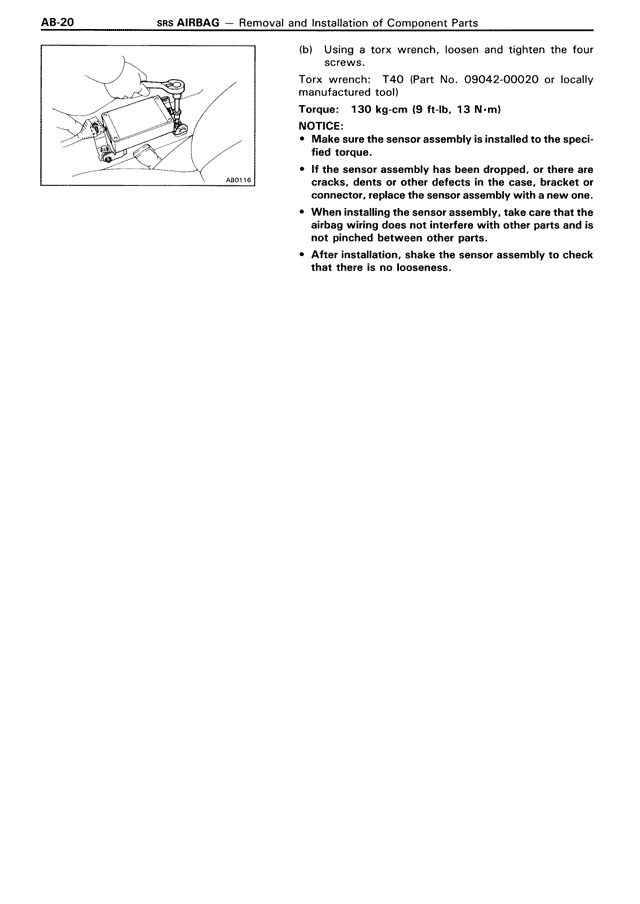

AB-20 SRS AIRBAG — Removal and Installation of Component Parts (b) Using a torx wrench, loosen and tighten the four screws. Torx wrench: T40 (Part No. 09042-00020 or locally manufactured tool) Torque: 130 kg·cm (9 ft·lb, 13 N·m) NOTICE: • Make sure the sensor assembly is installed to the specified torque. • If the sensor assembly has been dropped, or there are cracks, dents or other defects in the case, bracket or connector, replace the sensor assembly with a new one. • When installing the sensor assembly, take care that the airbag wiring does not interfere with other parts and is not pinched between other parts. • After installation, shake the sensor assembly to check that there is no looseness.
