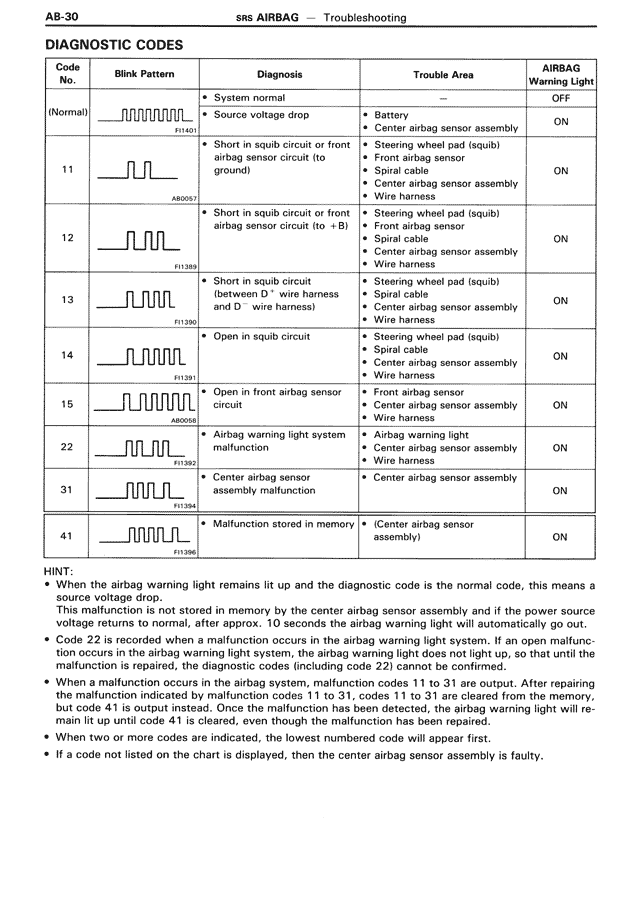

DIAGNOSTIC CODES
Code
No. | Blink Pattern | Diagnosis | Trouble Area | AIRBAG Warning Light
(Normal) | [blink pattern diagram] AB051 | • System normal
• Source voltage drop | —
• Battery
• Center airbag sensor assembly | OFF
ON
11 | [blink pattern diagram] AB051 | • Short in squib circuit or front airbag sensor circuit (to ground) | • Steering wheel pad (squib)
• Front airbag sensor
• Spiral cable
• Center airbag sensor assembly
• Wire harness | ON
12 | [blink pattern diagram] F11388 | • Short in squib circuit or front airbag sensor circuit (to +B) | • Steering wheel pad (squib)
• Front airbag sensor
• Spiral cable
• Center airbag sensor assembly
• Wire harness | ON
13 | [blink pattern diagram] F11390 | • Short in squib circuit (between D⁺ wire harness and D⁻ wire harness) | • Steering wheel pad (squib)
• Spiral cable
• Center airbag sensor assembly
• Wire harness | ON
14 | [blink pattern diagram] F11391 | • Open in squib circuit | • Steering wheel pad (squib)
• Spiral cable
• Center airbag sensor assembly
• Wire harness | ON
15 | [blink pattern diagram] AB048 | • Open in front airbag sensor circuit | • Front airbag sensor
• Center airbag sensor assembly
• Wire harness | ON
22 | [blink pattern diagram] F11392 | • Airbag warning light system malfunction | • Airbag warning light
• Center airbag sensor assembly
• Wire harness | ON
31 | [blink pattern diagram] F11394 | • Center airbag sensor assembly malfunction | • Center airbag sensor assembly | ON
41 | [blink pattern diagram] F11405 | • Malfunction stored in memory | • (Center airbag sensor assembly) | ON
HINT:
• When the airbag warning light remains lit up and the diagnostic code is the normal code, this means a source voltage drop.
This malfunction is not stored in memory by the center airbag sensor assembly and if the power source voltage returns to normal, after approx. 10 seconds the airbag warning light will automatically go out.
• Code 22 is recorded when a malfunction occurs in the airbag warning light system. If an open malfunction occurs in the airbag warning light system, the airbag warning light does not light up, so that until the malfunction is repaired, the diagnostic codes (including code 22) cannot be confirmed.
• When a malfunction occurs in the airbag system, malfunction codes 11 to 31 are output. After repairing the malfunction indicated by malfunction codes 11 to 31, codes 11 to 31 are cleared from the memory, but code 41 is output instead. Once the malfunction has been detected, the airbag warning light will remain lit up until code 41 is cleared, even though the malfunction has been repaired.
• When two or more codes are indicated, the lowest numbered code will appear first.
• If a code not listed on the chart is displayed, then the center airbag sensor assembly is faulty.
