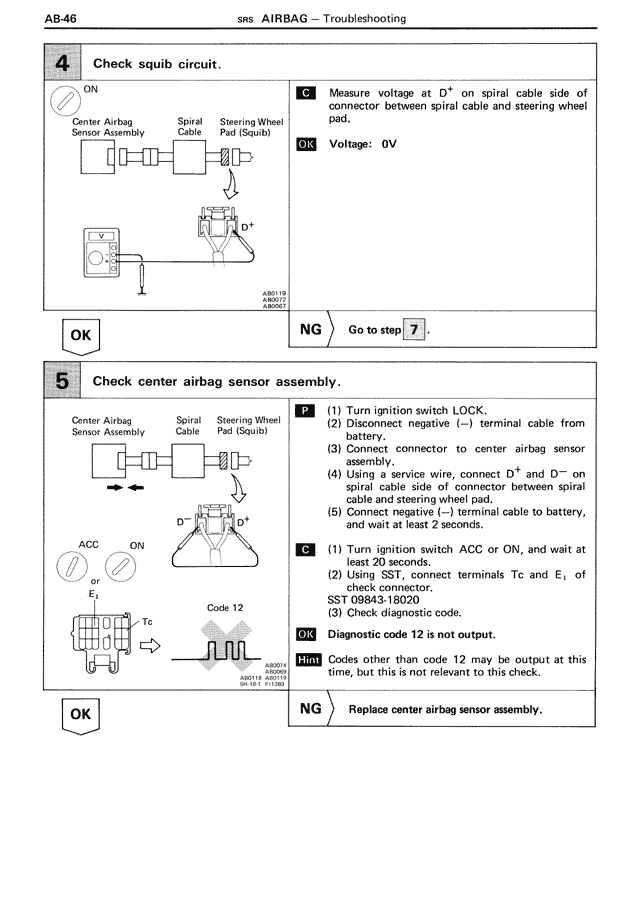

AB-46
4 Check squib circuit.
ON
Center Airbag Spiral Steering Wheel
Sensor Assembly Cable Pad (Squib)
D*
AB0112
AB0277
AB0015
OK NG Go to step 7.
5 Check center airbag sensor assembly.
Center Airbag Spiral Steering Wheel
Sensor Assembly Cable Pad (Squib)
D* D*
ACC ON
or
E1
Tc Code 12
SST 09843-18020
AB0114
AB0277
AB0115 AB0115
OK NG Replace center airbag sensor assembly.
C Measure voltage at D* on spiral cable side of connector between spiral cable and steering wheel pad.
OK Voltage: 0V
P (1) Turn ignition switch LOCK.
(2) Disconnect negative (-) terminal cable from battery.
(3) Connect connector to center airbag sensor assembly.
(4) Using SST, connect terminals D* and D~ on spiral cable side of connector between spiral cable and steering wheel.
(5) Connect negative (-) terminal cable to battery, and wait at least 2 seconds.
C (1) Turn ignition switch ACC or ON, and wait at least 20 seconds.
(2) Using SST, connect terminals Tc and E1 of check connector.
SST 09843-18020
(3) Check diagnostic code.
OK Diagnostic code 12 is not output.
Hint Codes other than code 12 may be output at this time, but this is not relevant to this check.
