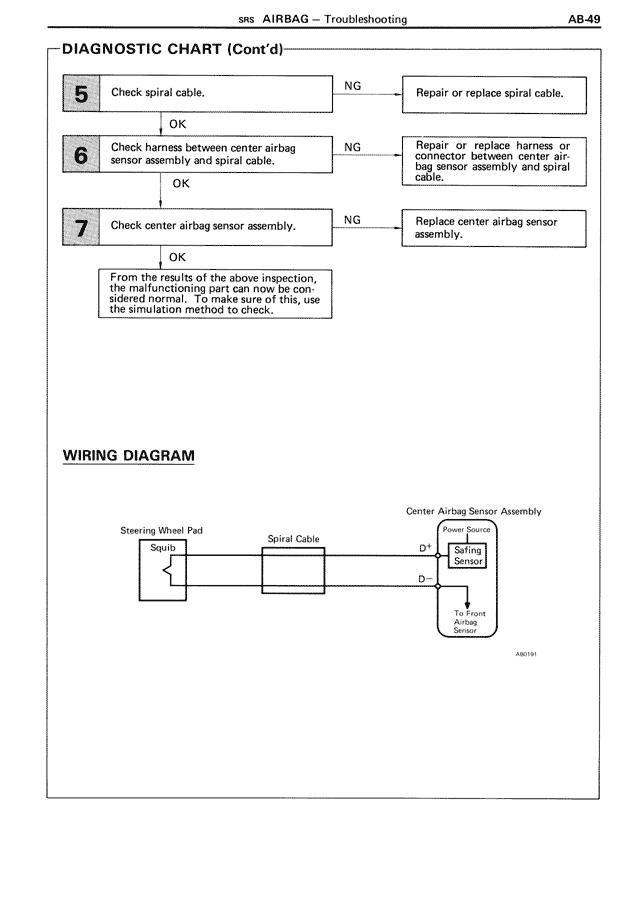

DIAGNOSTIC CHART (Cont'd)
5
Check spiral cable.
NG → Repair or replace spiral cable.
OK
6
Check harness between center airbag sensor assembly and spiral cable.
NG → Repair or replace harness or connector between center airbag sensor assembly and spiral cable.
OK
7
Check center airbag sensor assembly.
NG → Replace center airbag sensor assembly.
OK
From the results of the above inspection, the malfunctioning part can now be considered normal. To make sure of this, use the simulation method to check.
WIRING DIAGRAM
Center Airbag Sensor Assembly
Steering Wheel Pad
Squib → Spiral Cable → D* → Safing Sensor
→ D- → 16-Front Airbag Sensor
AB0191
