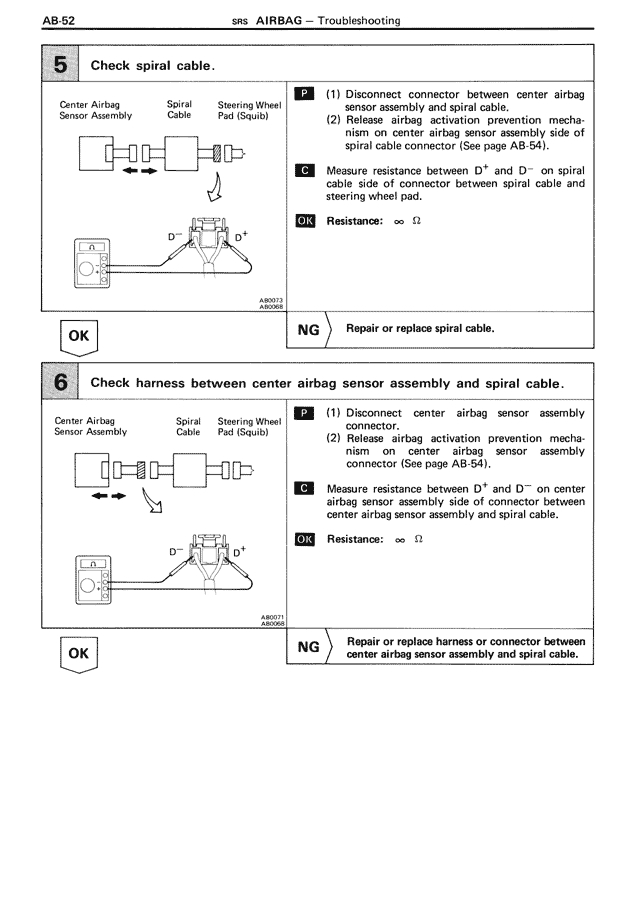

AB-52
SRS AIRBAG — Troubleshooting
5 Check spiral cable.
Center Airbag
Sensor Assembly
Spiral
Cable
Steering Wheel
Pad (Squib)
D+
D-
A80073
A80060
P (1) Disconnect connector between center airbag
sensor assembly and spiral cable.
(2) Release airbag activation prevention mecha-
nism on center airbag sensor assembly side of
spiral cable connector (See page AB-54).
C Measure resistance between D+ and D- on spiral
cable side of connector between spiral cable and
steering wheel pad.
OK Resistance: ∞ Ω
OK
NG Repair or replace spiral cable.
6 Check harness between center airbag sensor assembly and spiral cable.
Center Airbag
Sensor Assembly
Spiral
Cable
Steering Wheel
Pad (Squib)
D+
D-
A80073
A80060
P (1) Disconnect center airbag sensor assembly
connector.
(2) Release airbag activation prevention mecha-
nism on center airbag sensor assembly
connector (See page AB-54).
C Measure resistance between D+ and D- on center
airbag sensor assembly side of connector between
center airbag sensor assembly and spiral cable.
OK Resistance: ∞ Ω
OK
NG Repair or replace harness or connector between
center airbag sensor assembly and spiral cable.
