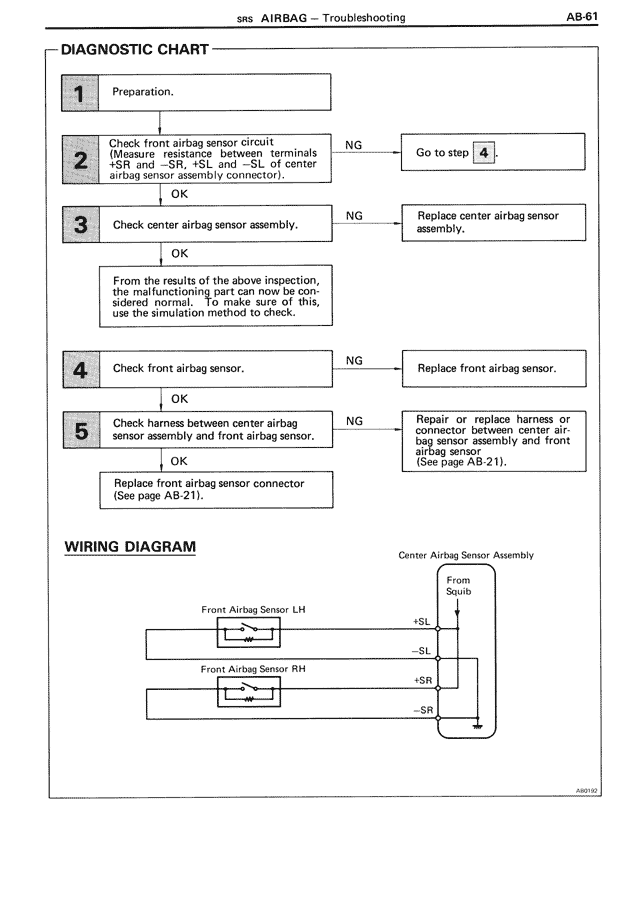

DIAGNOSTIC CHART 1 Preparation. 2 Check front airbag sensor circuit (Measure resistance between terminals +SL and -SL or +SR and -SR at center airbag sensor assembly connector). NG → Go to step 4 OK ↓ 3 Check center airbag sensor assembly. NG → Replace center airbag sensor assembly. OK ↓ From the results of the above inspection, the malfunctioning part can now be con- firmed. However, if there is any doubt, use the simulation method to check. 4 Check front airbag sensor. NG → Replace front airbag sensor. OK ↓ 5 Check harness between center airbag sensor assembly and front airbag sensor. NG → Repair or replace harness or connector between center air- bag sensor assembly and front airbag sensor (See page AB-21). OK ↓ Replace front airbag sensor connector (See page AB-21). WIRING DIAGRAM Center Airbag Sensor Assembly From Squib | +SL Front Airbag Sensor LH [sensor diagram] -SL Front Airbag Sensor RH +SR [sensor diagram] -SR | AB0132
