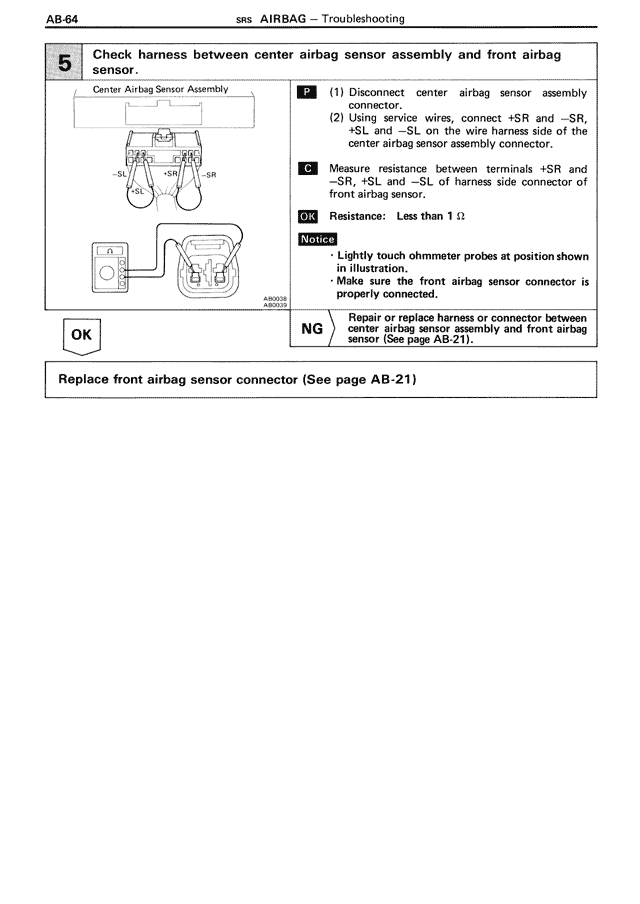

AB-64 SRS AIRBAG — Troubleshooting
5 Check harness between center airbag sensor assembly and front airbag
sensor.
Center Airbag Sensor Assembly
F (1) Disconnect center airbag sensor assembly
connector.
(2) Using service wires, connect +SR and −SR,
+SL and −SL on the wire harness side of the
center airbag sensor assembly connector.
+SL +SR −SR −SL C Measure resistance between terminals +SR and
−SR, +SL and −SL of harness side connector of
front airbag sensor.
OK Resistance: Less than 1 Ω
Notice
· Lightly touch ohmmeter probes at position shown
in illustration.
· Make sure the front airbag sensor connector is
AB0058 properly connected.
(B00013)
OK NG Repair or replace harness or connector between
center airbag sensor assembly and front airbag
sensor (See page AB-21).
Replace front airbag sensor connector (See page AB-21)
