AB-66
SRS AIRBAG — Troubleshooting

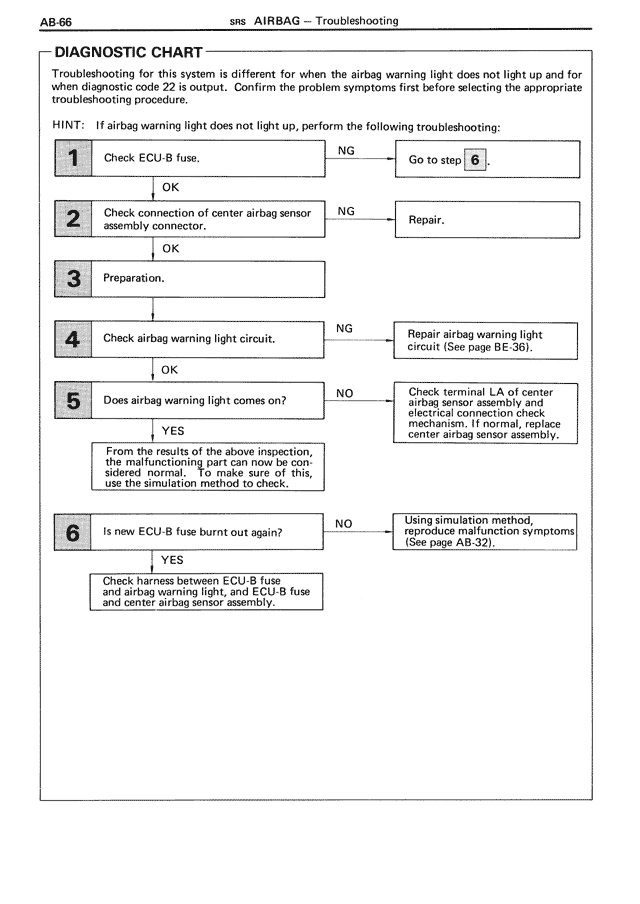

DIAGNOSTIC CHART
Troubleshooting for this system is different for when the airbag warning light does not light up and for when diagnostic code 22 is output. Confirm the problem symptoms first before selecting the appropriate troubleshooting procedure.
HINT: If airbag warning light does not light up, perform the following troubleshooting:
1
Check ECU-B fuse.
NG → Go to step 6.
OK ↓
2
Check connection of center airbag sensor assembly connector.
NG → Repair.
OK ↓
3
Preparation.
↓
4
Check airbag warning light circuit.
NG → Repair airbag warning light circuit (See page BE-36).
OK ↓
5
Does airbag warning light comes on?
NO → Check harness between center airbag sensor assembly and electrical connection to clock mechanism. If normal, replace center airbag sensor assembly.
YES ↓
From the results of the above inspection, the malfunctioning part can now be confirmed. Before repairing the vehicle, use the simulation method to check.
6
Is new ECU-B fuse burnt out again?
NO → Using simulation method, reproduce malfunction symptoms (See page AB-32).
YES ↓
Check harness between ECU-B fuse and airbag warning light, and ECU-B fuse and center airbag sensor assembly.
