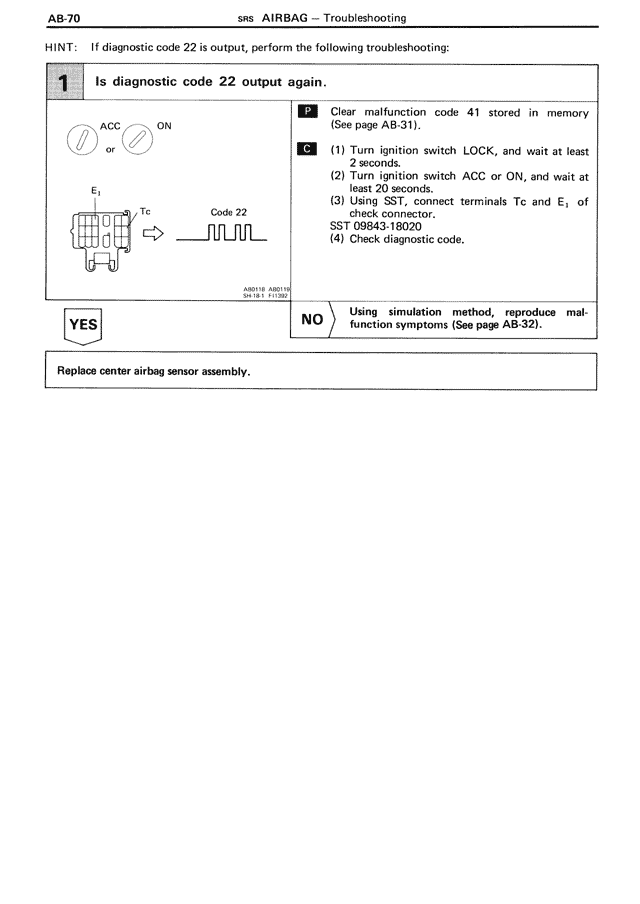

AB-70
SRS AIRBAG — Troubleshooting
HINT: If diagnostic code 22 is output, perform the following troubleshooting:
1
Is diagnostic code 22 output again.
ACC ON
or
E1
Tc
Code 22
SST 09843-18020
D
Clear malfunction code 41 stored in memory (See page AB-31).
C
(1) Turn ignition switch LOCK, and wait at least 2 seconds.
(2) Turn ignition switch ACC or ON, and wait at least 20 seconds.
(3) Using SST, connect terminals Tc and E1 of check connector.
SST 09843-18020
(4) Check diagnostic code.
YES
NO
Using simulation method, reproduce malfunction symptoms (See page AB-32).
Replace center airbag sensor assembly.
