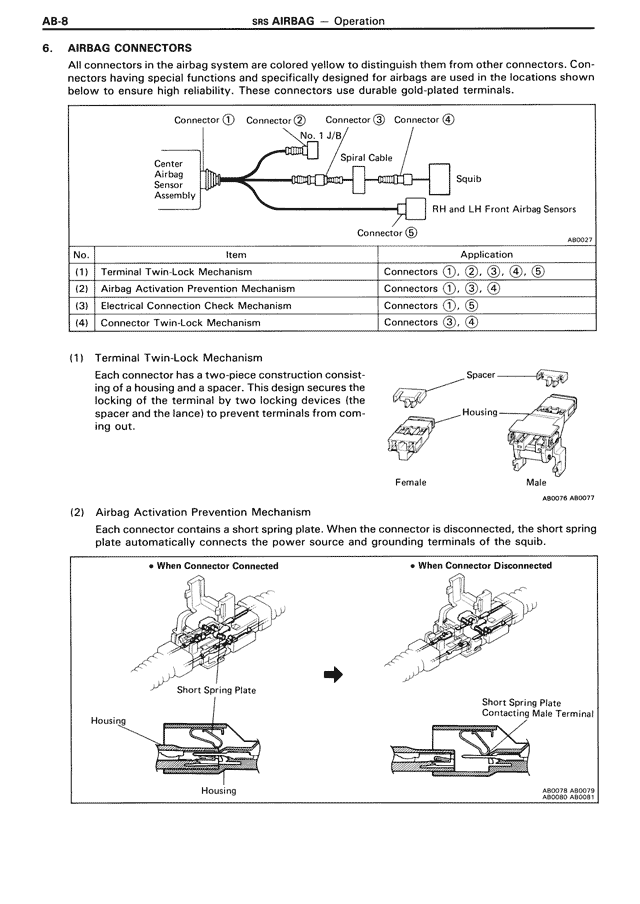

6. AIRBAG CONNECTORS
All connectors in the airbag system are colored yellow to distinguish them from other connectors. Connector having special functions and specifically designed for airbags are used in the locations shown below to ensure high reliability. These connectors use durable gold-plated terminals.
Connector ① Connector ② Connector ③ Connector ④
No. 1 J/B
ORR
Center
Airbag Spiral Cable
Sensor Squib
Assembly
RH and LH Front Airbag Sensors
Connector ⑤
A80027
No. Item Application
(1) Terminal Twin-Lock Mechanism Connectors ①, ②, ③, ④, ⑤
(2) Airbag Activation Prevention Mechanism Connectors ①, ③, ④
(3) Electrical Connection Check Mechanism Connectors ①, ⑤
(4) Connector Twin-Lock Mechanism Connectors ③, ④
(1) Terminal Twin-Lock Mechanism
Each connector has a two-piece construction consisting of a housing and a spacer. This design secures the locking of the terminal by two locking devices (the spacer and the lance) to prevent terminals from coming out.
Spacer
Housing
Female Male
A80078 A80077
(2) Airbag Activation Prevention Mechanism
Each connector contains a short spring plate. When the connector is disconnected, the short spring plate automatically connects the power source and grounding terminals of the squib.
• When Connector Connected • When Connector Disconnected
Short Spring Plate
Short Spring Plate
Contacting Male Terminal
Housing
Housing Housing
A80018 A80019
A80020 A80021
