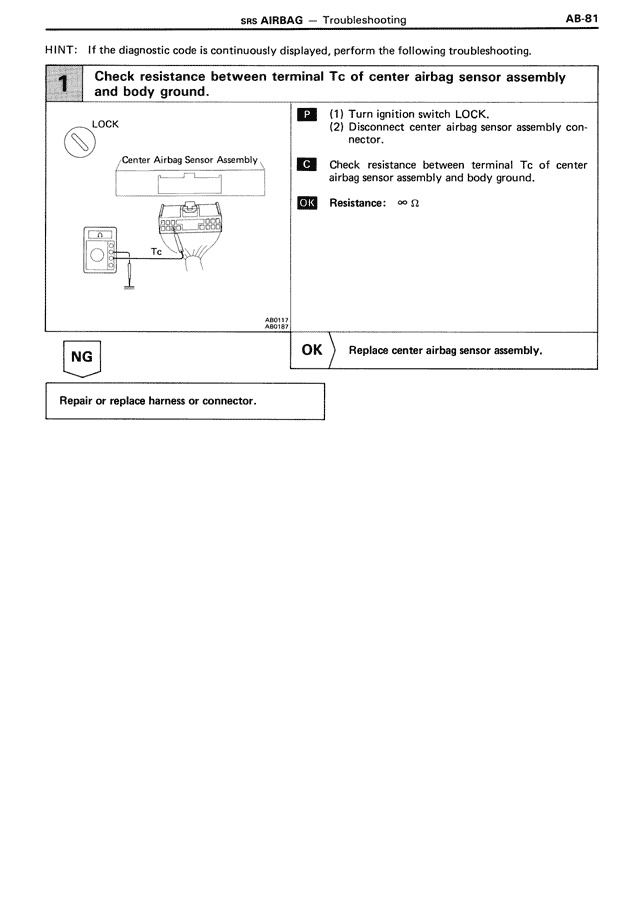

SRS AIRBAG — Troubleshooting AB-81
HINT: If the diagnostic code is continuously displayed, perform the following troubleshooting.
1 Check resistance between terminal Tc of center airbag sensor assembly
and body ground.
[DIAGRAM showing LOCK icon, Center Airbag Sensor Assembly with Tc terminal marked and ground symbol]
P (1) Turn ignition switch LOCK.
(2) Disconnect center airbag sensor assembly con-
nector.
C Check resistance between terminal Tc of center
airbag sensor assembly and body ground.
OK Resistance: ∞ Ω
NG
OK Replace center airbag sensor assembly.
Repair or replace harness or connector.
