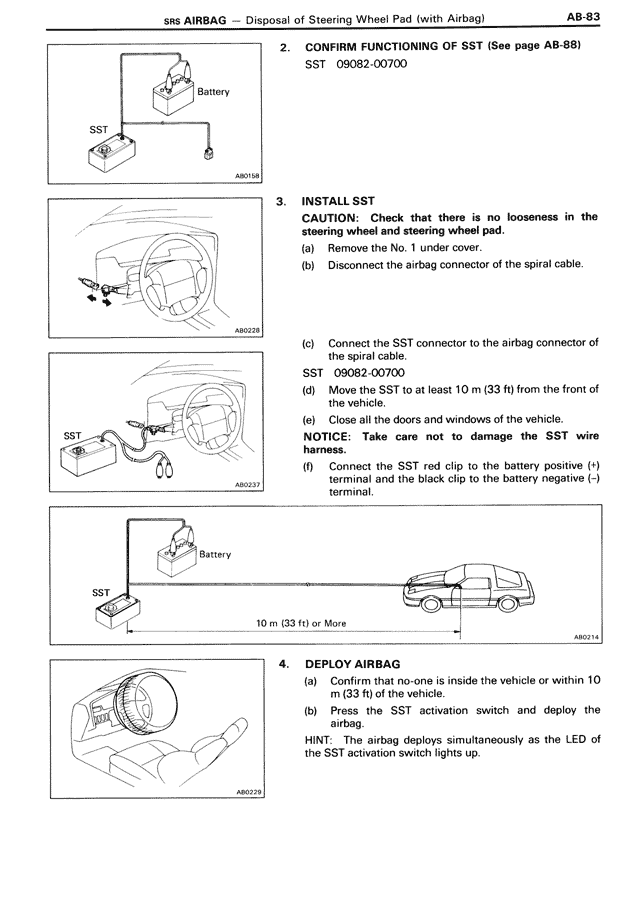

SRS AIRBAG — Disposal of Steering Wheel Pad (with Airbag) AB-83 2. CONFIRM FUNCTIONING OF SST (See page AB-88) SST 09082-00700 3. INSTALL SST CAUTION: Check that there is no looseness in the steering wheel and steering wheel pad. (a) Remove the No. 1 under cover. (b) Disconnect the airbag connector of the spiral cable. (c) Connect the SST connector to the airbag connector of the spiral cable. SST 09082-00700 (d) Move the SST to at least 10 m (33 ft) from the front of the vehicle. (e) Close all the doors and windows of the vehicle. NOTICE: Take care not to damage the SST wire harness. Connect the SST red clip to the battery positive (+) terminal and the black clip to the battery negative (-) terminal. 10 m (33 ft) or More 4. DEPLOY AIRBAG (a) Confirm that no-one is inside the vehicle or within 10 m (33 ft) of the vehicle. (b) Press the SST activation switch and deploy the airbag. HINT: The airbag deploys simultaneously as the LED of the SST activation switch lights up.
