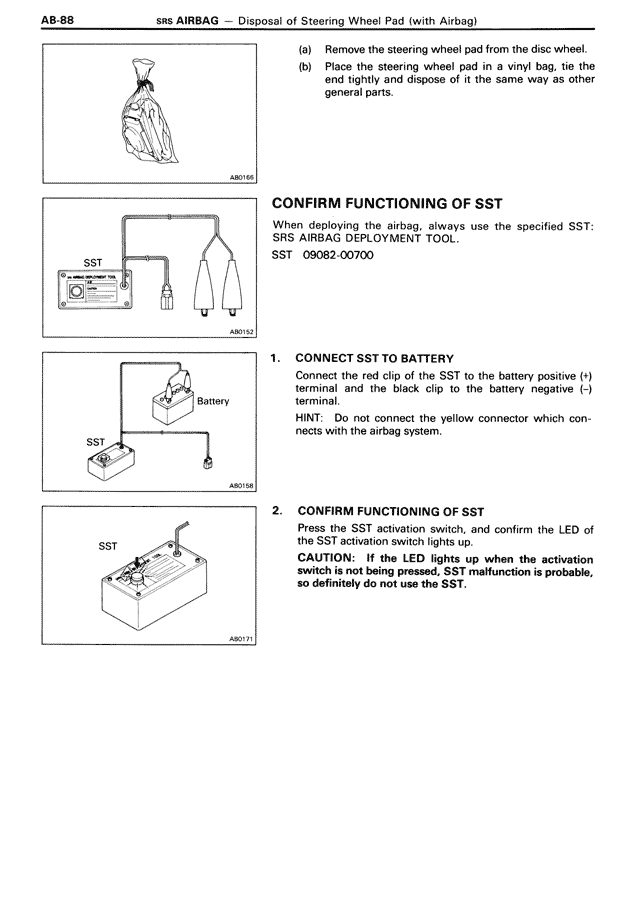

AB-88
SRS AIRBAG — Disposal of Steering Wheel Pad (with Airbag)
(a) Remove the steering wheel pad from the disc wheel.
(b) Place the steering wheel pad in a vinyl bag, tie the end tightly and dispose of it the same way as other general parts.
CONFIRM FUNCTIONING OF SST
When deploying the airbag, always use the specified SST:
SRS AIRBAG DEPLOYMENT TOOL,
SST 09082-00700
1. CONNECT SST TO BATTERY
Connect the red clip of the SST to the battery positive (+) terminal and the black clip to the battery negative (-) terminal.
HINT: Do not connect the yellow connector which connects with the airbag system.
2. CONFIRM FUNCTIONING OF SST
Press the SST activation switch, and confirm the LED of the SST activation switch lights up.
CAUTION: If the LED does not light when the activation switch is not being pressed, SST malfunction is probable, so definitely do not use the SST.
