AIR CONDITIONING SYSTEM — Troubleshooting
AC-15
TROUBLESHOOTING
You will find the troubles easier using the table well shown below. In this table, each number shows the priority of causes in troubles. Check each part in order. If necessary, replace these parts.

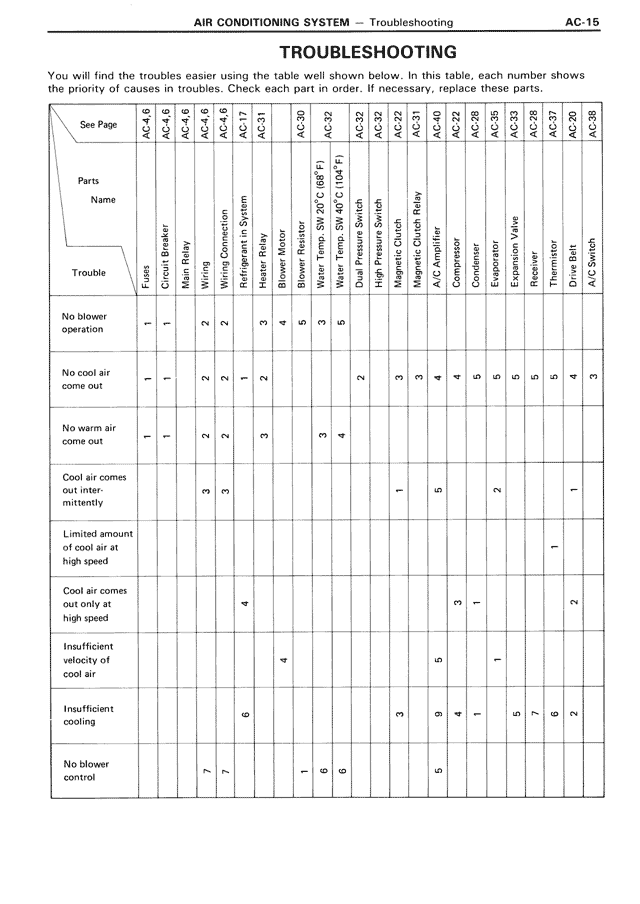

[THIS IS TABLE: Troubleshooting matrix with Parts Names across columns (AC-4 through AC-38) including components like Fuses, Cond. Blower, Main Relay, Wire Connection, Refrigerant System, Compressor, Blower Motor, Blower Resister, Water Temp. SW or D (86°F), Water Temp. SW or D (104°F), Dual Pressure Switch, High Pressure Switch, A/C Switch, Magnetic Clutch Relay, A/C Amplifier, Idle-up, Condenser, Evaporator, Heater Core, Receiver Valve, Thermistor, A/C Control, A/C Switch; and Trouble descriptions in rows including: No blower operation, No cool air come out, No warm air come out, Cool air comes out intermittently, Limited amount of cool air at high speed, Cool air comes out only at high speed, Insufficient velocity of cool air, Insufficient cooling, No blower control. Numbers 1-9 appear in cells indicating priority of checking each component for each trouble.]
