AIR CONDITIONING SYSTEM — Compressor AC-23

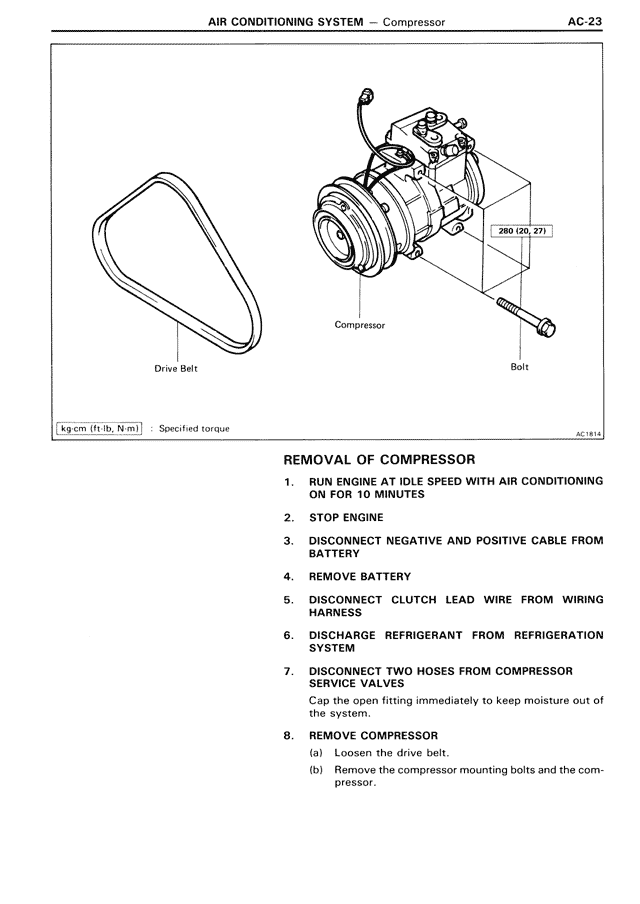

[DIAGRAM showing Drive Belt, Compressor, and Bolt with torque specification "280 (20, 27)"]
kg·cm (ft·lb, N·m) : Specified torque AC1814
REMOVAL OF COMPRESSOR
1. RUN ENGINE AT IDLE SPEED WITH AIR CONDITIONING ON FOR 10 MINUTES
2. STOP ENGINE
3. DISCONNECT NEGATIVE AND POSITIVE CABLE FROM BATTERY
4. REMOVE BATTERY
5. DISCONNECT CLUTCH LEAD WIRE FROM WIRING HARNESS
6. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
7. DISCONNECT TWO HOSES FROM COMPRESSOR SERVICE VALVES
Cap the open fitting immediately to keep moisture out of the system.
8. REMOVE COMPRESSOR
(a) Loosen the drive belt.
(b) Remove the compressor mounting bolts and the compressor.
